Description

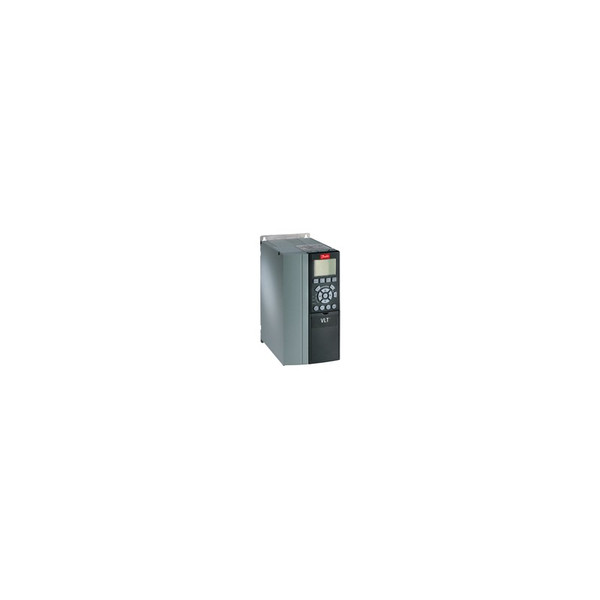

VLT Automation Drive FC-302 5.5 KW / 7.5 HP, 380-500 VAC, IP20 / Chassis,RFI Class A1/B (C1), Brake chopper FC-302P5K5T5E20H1BXXXXXSXXXXA0BKCXXXXDX
Product Details‚ 131N4815
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P5K5) 5.5 KW / 7.5 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (B) Brake chopper |
| LCP | (X) No Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | A3 |
| Tipocode Part 1 | FC-302P5K5T5E20H1BXX |
| Tipocode Part 2 | XXXSXXXXA0BKCXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 6.900 |
| Calculated Net Weight [kg] | 6.600 |
