Description
VLT AQUA Drive FC-202 11 KW / 15 HP, 380 - 480 VAC,IP55 / Type12 Backplate, RFI Class A1/B (C1),No brake chopper FC-202P11KT4P55H1XGCXXXSXXXXA4BXCXXXXDX
Product Details‚ 131N0309

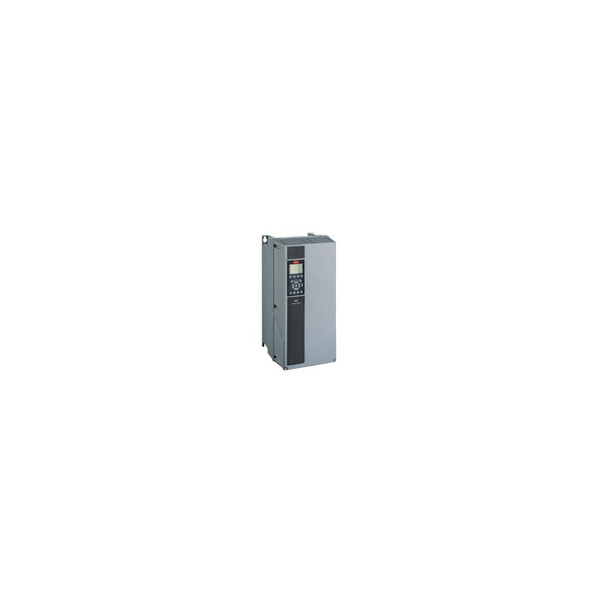

VLT AQUA Drive FC-202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P11K) 11 KW / 15 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (P55) IP55 / Tipo12 Backplate |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A4) DeviceNet MCA 104 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B1 |
| Tipocode Part 1 | FC-202P11KT4P55H1XGC |
| Tipocode Part 2 | XXXSXXXXA4BXCXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 23.600 |
| Calculated Net Weight [kg] | 23.300 |
