Description

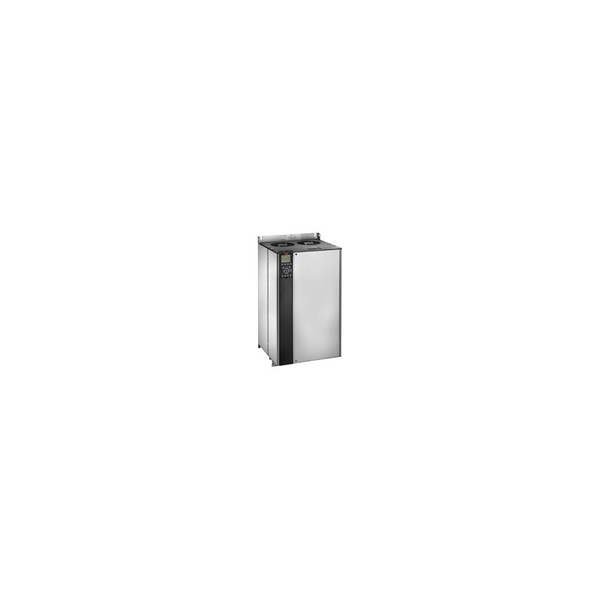

VLT HVAC Drive FC-102 90 KW / 125 HP, 380-480 VAC, Brake chopper + Safe stop, IP20 / Chassis, RFI Class A1/B (C1), PROFIBUS DP MCA 101, No B Option, Coated PCB, Loadsharing FC-102P90KT4E20H1UGCDXXSXXXXA0BXCXXXXD0
Product Details 131L7525
VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P90K) 90 KW / 125 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (U) Brake chopper + Safe stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (D) Loadsharing |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | C4 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P90KT4E20H1UGC |
| Typecode Part 2 | DXXSXXXXA0BXCXXXXD0 |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 50.300 |
| Calculated Net Weight [kg] | 50.000 |
