Description
VLT HVAC Drive FC-102 22 KW / 30 HP, 380-480 VAC, No brake chopper, IP21 / Type 1, RFI Class A1/B (cable len)(C1), No A Option, No B Option, Not coated PCB, No Mains Option FC-102P22KT4E21H3XGXXXXSXXXXAXBXCXXXXDX
Product Details 131B5477
VLT HVAC Drive FC 102

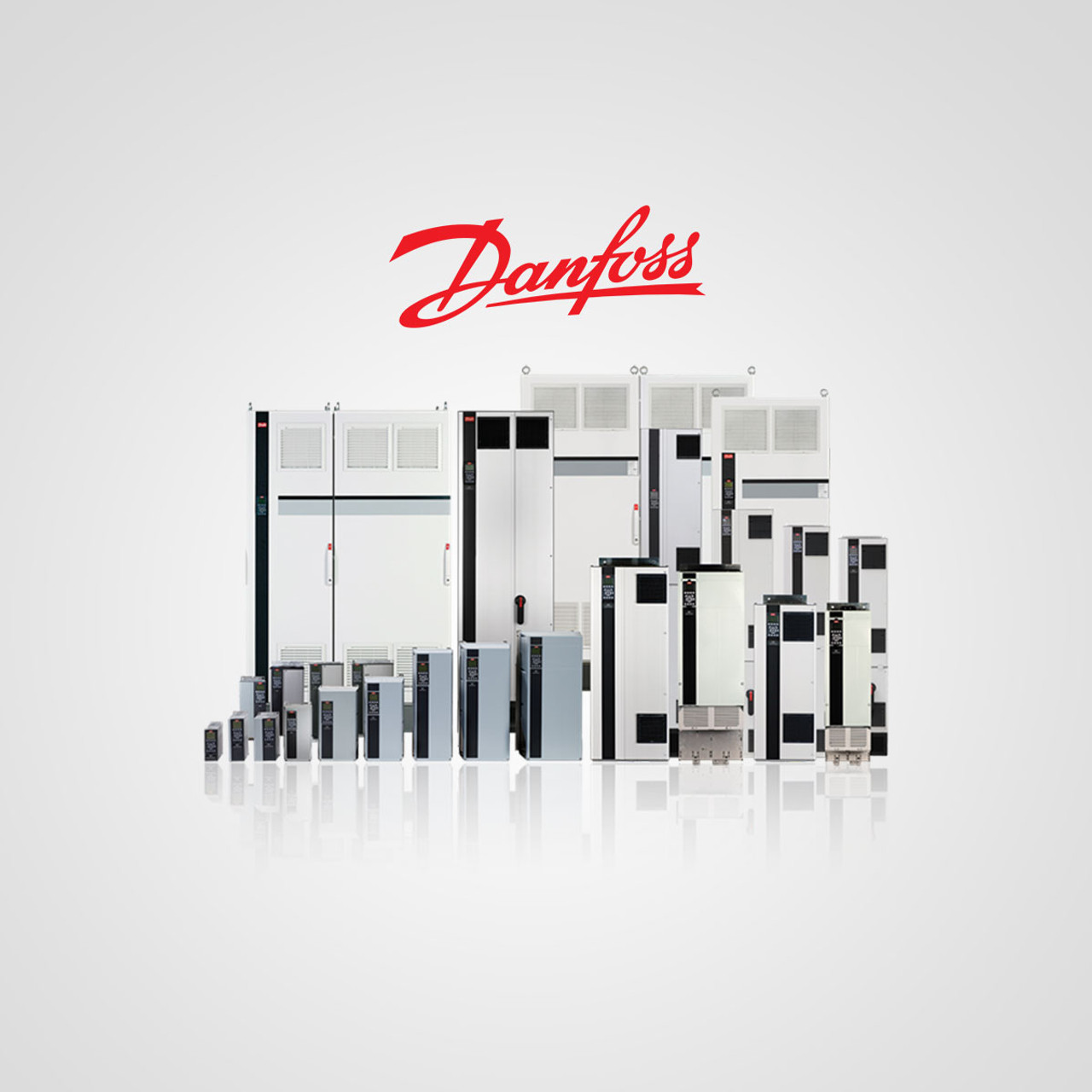

Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P22K) 22 KW / 30 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E21) IP21 / Type 1 |
| RFI Filter | RFI Class A1/B (cable len)(C1) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B2 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P22KT4E21H3XGX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 27.300 |
| Calculated Net Weight [kg] | 27.000 |
