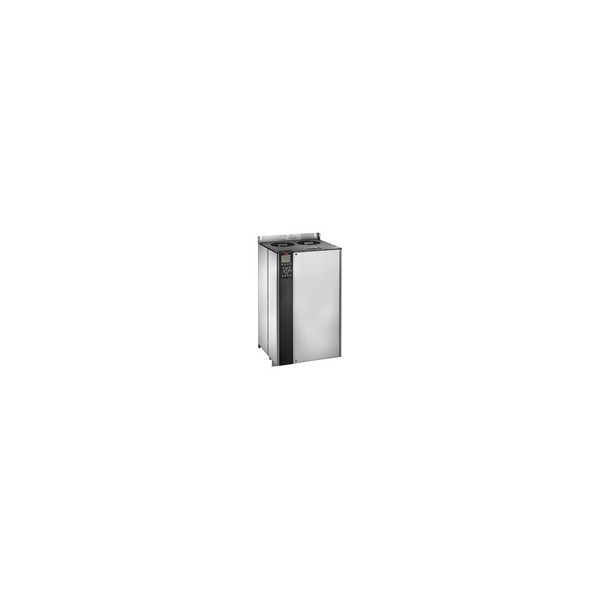

131L0131 DANFOSS VLT DRIVES Automation Drive FC 302 75 KW 100 HP 380 500 VAC IP20 FC-302P75KT5E20H1BNXXXXSXXXXAXBKCXXXXDX

Write a Review
SKU:
131L0131

VLT Automation Drive FC-302 75 KW / 100 HP, 380-500 VAC, IP20 / Chassis,RFI Class A1/B (C1), Brake chopper FC-302P75KT5E20H1BNXXXXSXXXXAXBKCXXXXDX Pro…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description
VLT Automation Drive FC-302 75 KW / 100 HP, 380-500 VAC, IP20 / Chassis,RFI Class A1/B (C1), Brake chopper FC-302P75KT5E20H1BNXXXXSXXXXAXBKCXXXXDX

Product Details‚ 131L0131

VLT AutomationDrive FC-300

The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.

Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.

Characteristic Value
Product Group(FC-) VLT AutomationDrive FC-
Series302
Power Rating(P75K) 75 KW / 100 HP
Phase(T) Three phase
Mains Voltage(5) 380 - 500 VAC
Enclosure(E20) IP20 / Chassis
RFI Filter(H1) RFI Class A1/B (C1)
Brake - Safe Stop(B) Brake chopper
LCP(N) Numerical Loc. Cont. Panel
Coating PCB(X) Not coated PCB
Mains Option(X) No Mains Option
Adaptation A(X) Standard Cable Entries
Adaptation B(X) No adaptation
Software Release(SXXX) Latest release std. SW.
Software Language Pack(X) Standard Language Pack
A Option(AX) No A Option
B Option(BK) MCB-101 General purp. I/O
C0 Option MCO(CX) No C0 option
C1 Option(X) No C1 option
C Option Software(XX) No software option
D Option(DX) No D option
Frame SizeC4
Tipocode Part 1FC-302P75KT5E20H1BNX
Tipocode Part 2XXXSXXXXAXBKCXXXXDX
Product CatalogGlobal (Standard)
VendorFactory DK
Vendor RegionSouthern Europe
Calculated Gross Weight50.500
Calculated Net Weight [kg]50.200
