Description

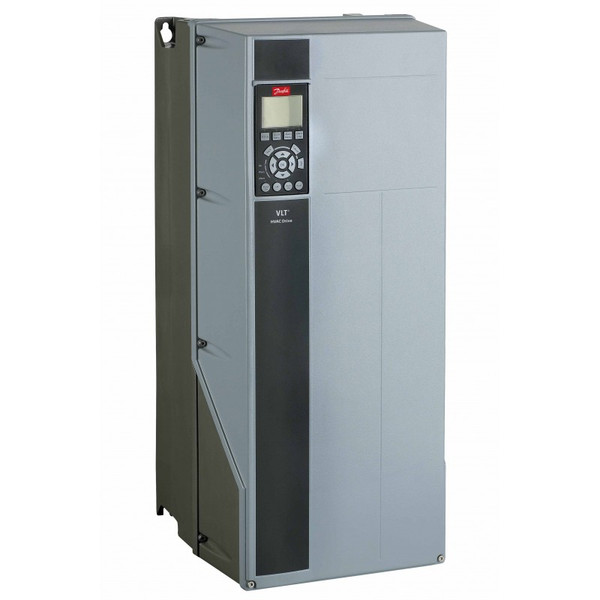

VLT Automation Drive FC-301 22 KW / 30 HP, 200-240 VAC, IP21 / Type 1,RFI Class A2 (C3), Brake chopper FC-301P22KT2E21H2BNCXXXSXXXXAXBXCXXXXDX
Product details
| Gross weight | 61.9 kg |
| Net weight | 61.6 kg |
| Volume | 0 l |
| EAN | 5710107154814 |
VLT AUTOMATIONDRIVE FC 300 SERIES
| Product Group | FC- | VLT AutomationDrive FC- |
| Series | 301 | 301 |
| Power Rating | P22K | (P22K) 22 KW / 30 HP |
| Phase | T | Three phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | E21 | IP21 / Type 1 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | B | Brake chopper |
| LCP | N | Numerical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | C1 | C1 |
| Typecode Part 1 | FC-301P22KT2E21H2BNC | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Calculated Gross Weight | 61.9 | |
| Calculated Net Weight [kg] | 61.6 | |
| Continuous Current (HO) [A] | NV | |
| Continuous Current (HO) [A] | NV | |
| Continuous Current (NO) [A] | 115 | |
| Continuous Current (NO) [A] | NV | |
| Depth [mm] | 310,0 | |
| Depth with Option A/B [mm] | 310,0 | |
| Height [mm] | 680,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | NV | |
| Intermittent Current (HO) [A] | NV | |
| Intermittent Current (NO) [A] | 127 | |
| Intermittent Current (NO) [A] | NV | |
| kVA | 31.7 | |
| Material Gross Weight | 61.9 | |
| Material Net Weight | 61.6 | |
| Modelcode01 | FC-301P22KT2E21H2BNC | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 30 | |
| Power 150% (HO) [KW] | 22 | |
| Power 160% (HO) [KW] | NV | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 874 | |
| Power Loss HO [W] | NV | |
| Power Loss NO [W] | 1140 | |
| Power Loss NO [W] | NV | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Software Language Pack | X | Standard Language Pack |
| Software Release | SXXX | Latest release std. SW. |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 308,0 |
