Description
Safety modules enable machines to interact intelligently with operators to increase safety, reduce system costs, improve flexibility and increase productivity. VLT® MCB 15x Safe options provide an intelligent, user-friendly solution to meet the IEC 61800-5-2 functional safety standard and helps to reduce cabling. The new safety module is certified according to ISO 13849-1 PL d Category 3 and SIL 2 according to IEC 61508.
Product details
| Gross weight | 11.1 kg | ||
| Net weight | 10.8 kg | ||
| Volume | 42.336 l | ||
| EAN | 5702427493834 |
Allocate codes for sales
| \\Customer Specific\\ | No |
Sales restriction control
| Matr grp for sales restriction | 0001 |

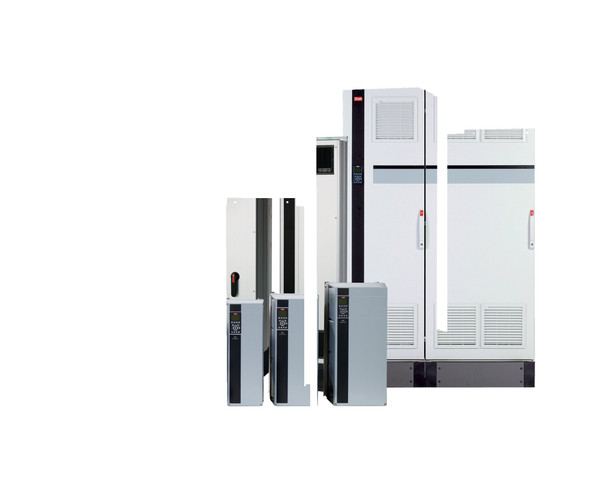

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product Group | (FC-) VLT® AutomationDrive FC- | ||
| Series | 302 | ||
| Power Rating | (P5K5) 5.5 KW / 7.5 HP | ||
| Phase | (T) Three phase | ||
| Mains Voltage | (2) 200 - 240 VAC | ||
| Enclosure | (E20) IP20 / Chassis | ||
| RFI Filter | (H2) RFI Class A2 (C3) | ||
| Brake - Safe Stop | (X) No brake chopper | ||
| LCP | (G) Graphical Loc. Cont. Panel | ||
| Coating PCB | (X) Not coated PCB | ||
| Mains Option | (X) No Mains Option | ||
| Adaptation A | (X) Standard Cable Entries | ||
| Adaptation B | (X) No adaptation | ||
| A Option | (AX) No A Option | ||
| B Option | (BX) No B Option | ||
| C0 Option MCO | (CX) No C0 option | ||
| C1 Option | (X) No C1 option | ||
| C Option Software | (XX) No software option | ||
| D Option | (DX) No D option | ||
| Frame Size | B3 | ||
| Typecode Part 1 | FC-302P5K5T2E20H2XGX | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Calculated Gross Weight | 11.6 | ||
| Calculated Net Weight [kg] | 11.3 | ||
| Division | 09 | ||
| Modelcode01 | FC-302P5K5T2E20H2XGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | Global (Standard) | ||
| Product Group | A95 | ||
| Product Hierarchy | 09A9560560045 | ||
| Product View (Switch) | Global (Standard) | ||
| Software Language Pack | (X) Standard Language Pack | ||
| Software Release | (SXXX) Latest release std. SW. | ||
| Vendor | Cannot Determine Vendor |
