Description
Extends the Safe Torque Off feature of VLT® drives with additional safety functions: Safe Stop 1 (SS1), Safely Limited Speed(SLS), Safe Maximum Speed (SMS) and Safe Speed Monitor (SSM).
Product details
| Gross weight | 13.05 kg | ||
| Net weight | 12.3 kg | ||
| Volume | 59.024 l | ||
| EAN | 5702427397040 |
Allocate codes for sales
| \\Customer Specific\\ | No |
Sales restriction control
| Matr grp for sales restriction | 0001 |

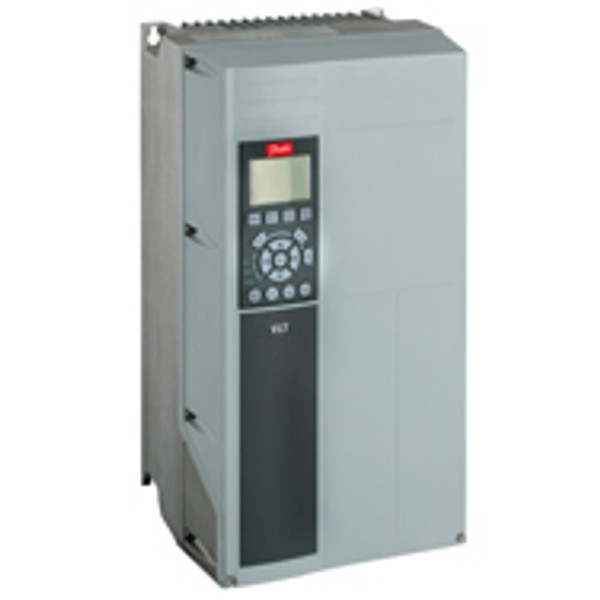

VLT® HVAC DRIVE FC 100 SERIES
| Product Group | (FC-) VLT® HVAC Drive FC- | ||
| Series | 102 | ||
| Power Rating | (P4K0) 4.0 KW / 5.5 HP | ||
| Phase | (T) Three phase | ||
| Mains Voltage | (4) 380 - 480 VAC | ||
| Enclosure | (E55) IP55 / Type 12 | ||
| RFI Filter | (H1) RFI Class A1/B (C1) | ||
| Brake - Safe Stop | (X) No brake chopper | ||
| LCP | (G) Graphical Loc. Cont. Panel | ||
| Coating PCB | (X) Not coated PCB | ||
| Mains Option | (X) No Mains Option | ||
| Adaptation A | (X) Standard Cable Entries | ||
| Adaptation B | (X) No adaptation | ||
| A Option | (AG) LonWorks MCA 108 | ||
| Software Release | (SXXX) Latest release std. SW. | ||
| B Option | (BX) No B Option | ||
| Software Language Pack | (X) Standard Language Pack | ||
| C0 Option MCO | (CX) No C0 option | ||
| C1 Option | (X) No C1 option | ||
| C Option Software | (XX) No software option | ||
| D Option | (DX) No D option | ||
| Frame Size | A5 | ||
| Typecode Part 1 | FC-102P4K0T4E55H1XGX | ||
| Typecode Part 2 | XXXSXXXXAGBXCXXXXDX | ||
| Calculated Gross Weight | 10 | ||
| Calculated Net Weight [kg] | 9.7 | ||
| Cross-Plant Configurable Mater | 100_SER | ||
| Division | 09 | ||
| Material Gross Weight | 13.05 | ||
| Material Net Weight | 12.3 | ||
| Modelcode01 | FC-102P4K0T4E55H1XGX | ||
| Modelcode02 | XXXSXXXXAGBXCXXXXDX | ||
| Product Catalog | NO VIEW | ||
| Product Group | A97 | ||
| Product Hierarchy | 09A9760260359 | ||
| Product View (Switch) | Global (Standard) | ||
| Recommended Factory | Cannot Determine Vendor | ||
| Vendor | Cannot Determine Vendor |
