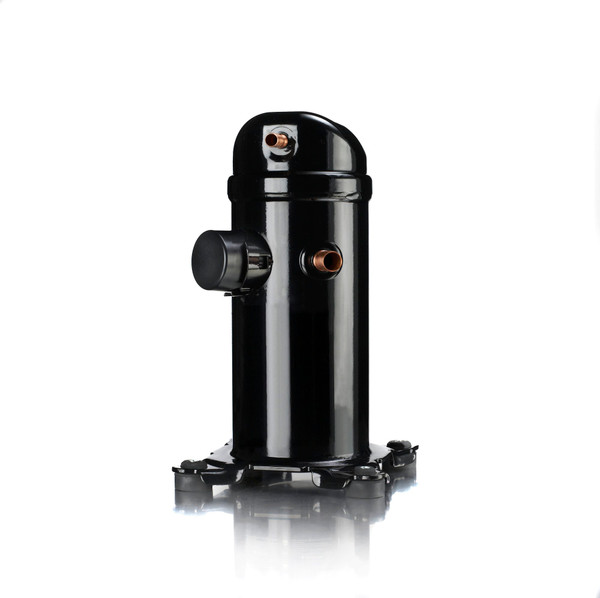

Description
Refrigerant: R407C, Segment usage: Heating, Compressor power supply [V/Ph/Hz]: 220-240/1/50
Product details
| Gross weight | 35.5 kg |
| Net weight | 31.5 kg |
| EAN | 5702428378642 |
| Gross weight | 35.5 kg |
| Net weight | 31.5 kg |
| EAN | 5702428378642 |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.6 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 40 µF |
| Capacity of capacitor B | 145-175 µF |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HHP015T5 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-2 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 264 V |
| High value of voltage range at 60Hz [V] | 0 V |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA | 60 A |
| Main winding resistance for single-phase compressors [Ohm] | 1.02 Ohm |
| MCC | 19 A |
| Model number | HHP015T5LP6 |
| Motor protection | Internal overload protector |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 6 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R407C |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Relief valve | Yes |
| RLA | 13.6 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Heating |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 34 cm3 |
| Technology | Scroll |
| Total height [mm] | 413 mm |
| Type | HHP |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Width [mm] | 239 mm |
