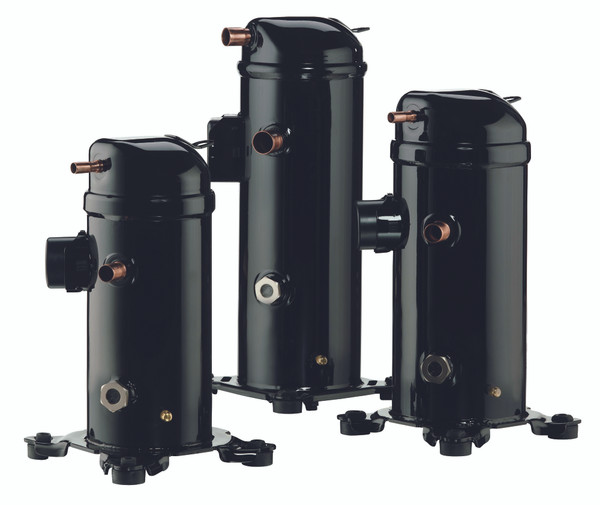

Description
Refrigerant: R134a; R22; R404A; R407A; R407C; R407F; R507, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
Product details
| Gross weight | 33.5 kg |
| Net weight | 29.5 kg |
| EAN | 5702428249997 |
| Gross weight | 33.5 kg |
| Net weight | 29.5 kg |
| EAN | 5702428249997 |
| Approval standard | CE UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 400/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | MLZ026T4 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6300B-1 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High side max pressure (Ps) | 31.1 bar |
| High value of nominal voltage at 50Hz [V] | 400 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 460 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 26.2 bar |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 340 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 45 A |
| MCC | 10 A |
| Model number | MLZ026T4LP9 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity at 50Hz | 5.9 kW |
| Nominal cooling capacity at 60Hz | 7.6 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packaging weight [Kg] | 33 kg |
| Packing format | Single pack/pallet |
| Packing quantity | 6 |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R134a R22 R404A R407A R407C R407F R507 |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Relief valve | 32 bar |
| RLA | 6.4 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration MT |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 57.11 cm3 |
| Technology | Scroll |
| Total height [mm] | 412 mm |
| Type | MLZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance 1-2 [Ohm] | 4.66 Ohm |
| Winding resistance 1-3 [Ohm] | 3.42 Ohm |
| Winding resistance 2-3 [Ohm] | 4.66 Ohm |
