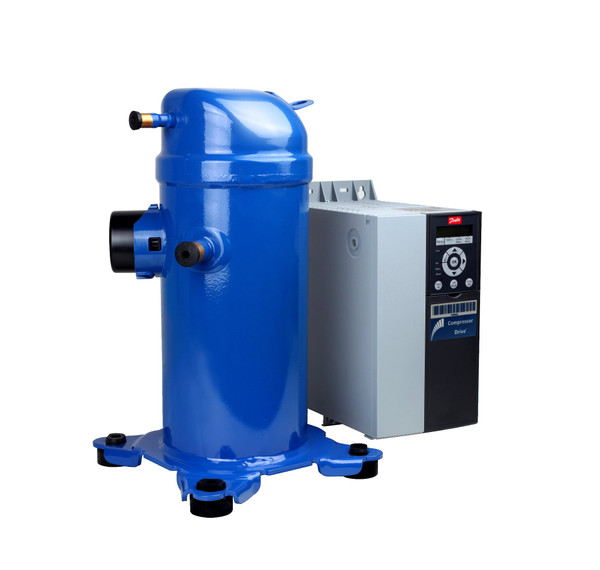

Description
Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380-480/3/50-60
Product details
| Gross weight | 27.67 kg |
| Net weight | 26 kg |
| EAN | 5702428667289 |
| Gross weight | 27.67 kg |
| Net weight | 26 kg |
| EAN | 5702428667289 |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CGANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VZH044CGANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0182 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm3 |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CGANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VZH044CGANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0182 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm3 |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
Product details
| Gross weight | 27.67 kg |
| Net weight | 26 kg |
| EAN | 5702428667289 |
| Gross weight | 27.67 kg |
| Net weight | 26 kg |
| EAN | 5702428667289 |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CGANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VZH044CGANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0182 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm3 |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CGANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VZH044CGANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0182 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm3 |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
