Description
Refrigerant: R404A; R507A, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 208-230/1/60
Product details
| Gross weight | 24.88 kg |
| Net weight | 23 kg |
| EAN | 5702428934558 |
| Gross weight | 24.88 kg |
| Net weight | 23 kg |
| EAN | 5702428934558 |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.84 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 25 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |

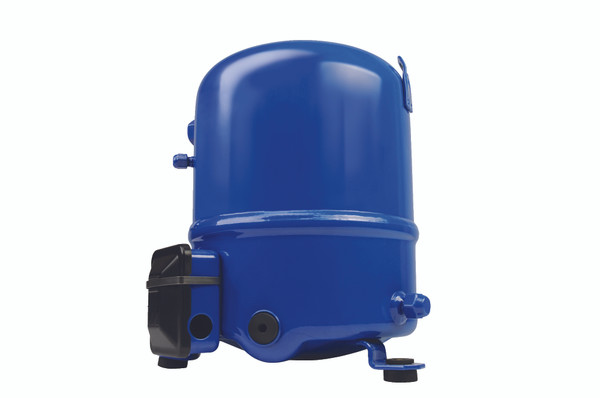

| Description | NTZ068-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection mounting torque [Nm] | 80 N-m |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 8501026f |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 28.5 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP55 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 72 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.68 Ohm |
| MCC | 21 A |
| Model number | NTZ068A1LR1A |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Nominal cooling capacity at 60Hz | 2.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 175PZ |
| Packaging height [mm] | 370 mm |
| Packaging length [mm] | 385 mm |
| Packaging width [mm] | 285 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R404A R507A |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection mounting torque [Nm] | 90 N-m |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 5/8 in |
| Swept volume [cm3] | 68 cm3 |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 333 mm |
| Type | NTZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.84 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 25 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |
| Description | NTZ068-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection mounting torque [Nm] | 80 N-m |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 8501026f |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 28.5 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP55 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 72 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.68 Ohm |
| MCC | 21 A |
| Model number | NTZ068A1LR1A |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Nominal cooling capacity at 60Hz | 2.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 175PZ |
| Packaging height [mm] | 370 mm |
| Packaging length [mm] | 385 mm |
| Packaging width [mm] | 285 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R404A R507A |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection mounting torque [Nm] | 90 N-m |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 5/8 in |
| Swept volume [cm3] | 68 cm3 |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 333 mm |
| Type | NTZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
Product details
| Gross weight | 24.88 kg |
| Net weight | 23 kg |
| EAN | 5702428934558 |
| Gross weight | 24.88 kg |
| Net weight | 23 kg |
| EAN | 5702428934558 |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.84 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 25 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |
| Description | NTZ068-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection mounting torque [Nm] | 80 N-m |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 8501026f |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 28.5 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP55 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 72 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.68 Ohm |
| MCC | 21 A |
| Model number | NTZ068A1LR1A |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Nominal cooling capacity at 60Hz | 2.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 175PZ |
| Packaging height [mm] | 370 mm |
| Packaging length [mm] | 385 mm |
| Packaging width [mm] | 285 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R404A R507A |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection mounting torque [Nm] | 90 N-m |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 5/8 in |
| Swept volume [cm3] | 68 cm3 |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 333 mm |
| Type | NTZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.84 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 25 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |
| Description | NTZ068-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection mounting torque [Nm] | 80 N-m |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 8501026f |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 28.5 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP55 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 72 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.68 Ohm |
| MCC | 21 A |
| Model number | NTZ068A1LR1A |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Nominal cooling capacity at 60Hz | 2.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 175PZ |
| Packaging height [mm] | 370 mm |
| Packaging length [mm] | 385 mm |
| Packaging width [mm] | 285 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R404A R507A |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection mounting torque [Nm] | 90 N-m |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 5/8 in |
| Swept volume [cm3] | 68 cm3 |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 333 mm |
| Type | NTZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
