Description
Refrigerant: R134a; R404A; R407C; R507A, Segment usage: Air conditioning;Refrigeration LT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 380-480/3/50-60
Product details
| Gross weight | 80 kg |
| Net weight | 76 kg |
| EAN | 5702428666114 |
| Gross weight | 80 kg |
| Net weight | 76 kg |
| EAN | 5702428666114 |
| Approval standard | CE certified UL certified when connected to frequency converter |
| Brand technique | Reciprocating compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 4 |

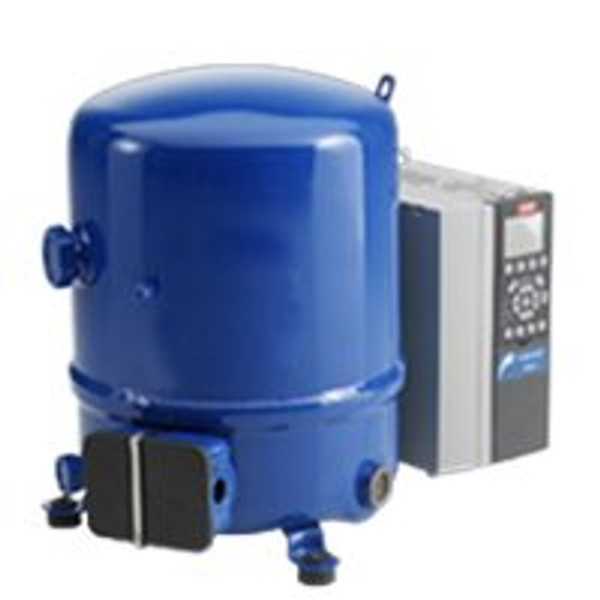

| Description | VTZ242-G |
| Diameter [mm] | 352 mm |
| Discharge connection height [mm] | 125 mm |
| Discharge connection mounting torque [Nm] | 90 N-m |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection rotolock size [in] | 1 1/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Discharge connection sleeve pipe size [in] | 3/4 in |
| Drawing number | 8504019a |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 30 - 85 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 29.4 bar |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 480 V |
| High value of voltage range at 60Hz [V] | 480 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 380 V |
| Low value of voltage range at 60Hz [V] | 380 V |
| LRA | 218 A |
| MMT | 53.1 A |
| Model number | VTZ242AGNR1A |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 50 N-m |
| Nominal cooling capacity at 50Hz | 1.7 kW |
| Nominal cooling capacity at 60Hz | 28.2 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.9 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 160PZ |
| Packaging height [mm] | 600 mm |
| Packaging length [mm] | 485 mm |
| Packaging width [mm] | 395 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Refrigerant | R134a R404A R407C R507A |
| Refrigerant charge [kg] [Max] | 10 kg |
| Relief valve | 30 bar/8 bar |
| RLA | 42.5 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Air conditioning Refrigeration LT Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 233 mm |
| Suction connection mounting torque [Nm] | 110 N-m |
| Suction connection pipe size [in] | 1 1/8 in |
| Suction connection rotolock size [in] | 1 3/4 in |
| Suction connection size [in] | 1 3/4 in |
| Suction connection sleeve pipe size [in] | 1 1/8 in |
| Swept volume [cm3] | 241.87 cm3 |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 538 mm |
| Type | VTZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.37 Ohm |
