Description

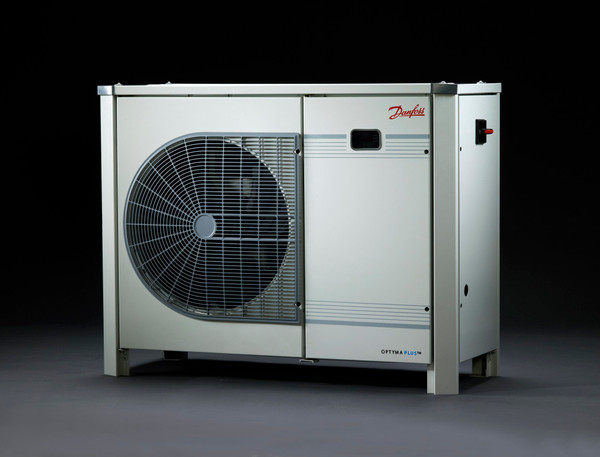

Type designation: Condensing Units, Type: Optyma™ Plus, Model number: OP-MPGM033AJP00G, Refrigerant: R134a; R513A, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
Product details
| Gross weight | 97 kg |
| Net weight | 80 kg |
| EAN | 5702428564755 |
| Gross weight | 97 kg |
| Net weight | 80 kg |
| EAN | 5702428564755 |
| Air flow @ 50Hz [m³/h] | 3300 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | CAJ4511Y |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | D7 |
| Description | OP-MPGM033AJP00G |
| Electrical code | G |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | Grill H2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 430 mm |
| Liquid line connection [in] | 3/8 in |
| Liquid line connection type | Solder |
| MCC | 8.9 A |
| Model number | OP-MPGM033AJP00G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE |
| Refrigerant | R134a R513A |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 67 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 36 dBA |
| Suction connection size [in] | 5/8 in |
| Suction connection type | Solder |
| Technology | Reciprocating |
| Total height [mm] | 813 mm |
| Type | Optyma™ Plus |
| Type designation | Condensing Units |
| Version | P00 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 1055 mm |
| Air flow @ 50Hz [m³/h] | 3300 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | CAJ4511Y |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | D7 |
| Description | OP-MPGM033AJP00G |
| Electrical code | G |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | Grill H2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 430 mm |
| Liquid line connection [in] | 3/8 in |
| Liquid line connection type | Solder |
| MCC | 8.9 A |
| Model number | OP-MPGM033AJP00G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE |
| Refrigerant | R134a R513A |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 67 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 36 dBA |
| Suction connection size [in] | 5/8 in |
| Suction connection type | Solder |
| Technology | Reciprocating |
| Total height [mm] | 813 mm |
| Type | Optyma™ Plus |
| Type designation | Condensing Units |
| Version | P00 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 1055 mm |
