Description

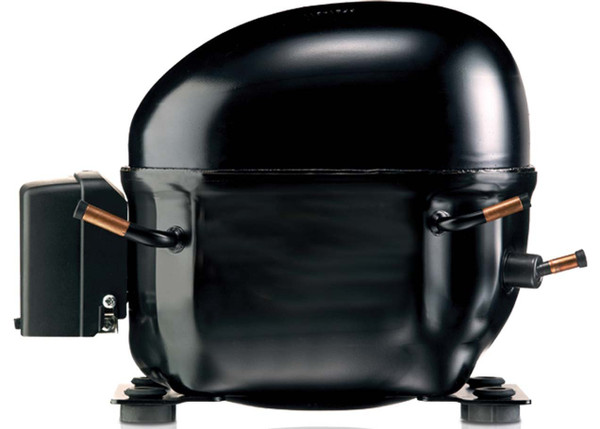

Refrigerant: R290, Segment usage: Refrigeration LT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220-240/1/50
Product details
| Gross weight | 11.22 kg |
| Net weight | 11.22 kg |
| Gross weight | 11.22 kg |
| Net weight | 11.22 kg |
| Application energy level | Universal LBP/MBP |
| Applications | LBP MBP |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.7 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.7 Ohm |
| Base plate type | EU small |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current HST [A] | 10.4 A |
| Cut in current LST [A] | 13.6 A |
| Description | NL9CN |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Free gas volume [cm3] | 2360 cm3 |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 197 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 264 V |
| High value of voltage range at 60Hz [V] | 0 V |
| Length [mm] | 252 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA HST 60Hz [A] | 10.4 A |
| LRA HST [A] | 10.4 A |
| LRA LST [A] | 9.2 A |
| Main winding resistance for single-phase compressors [Ohm] | 8.2 Ohm |
| Model number | NL9CN |
| Motor type | CSIR RSCR RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 270 cm3 |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 80 |
| Phase | 1 |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Copper |
| Refrigerant | R290 |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| RLA | 1.80 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Run capacitor capacitance | 4 µF |
| Segment usage | Refrigeration LT Refrigeration MT |
| Suction connection angle [°] | 15 ° |
| Suction connection comments | Rubber plug |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 8.35 cm3 |
| Technology | Reciprocating |
| Total height [mm] | 203 mm |
| Type | NL |
| Type designation | Compressor |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
