Description

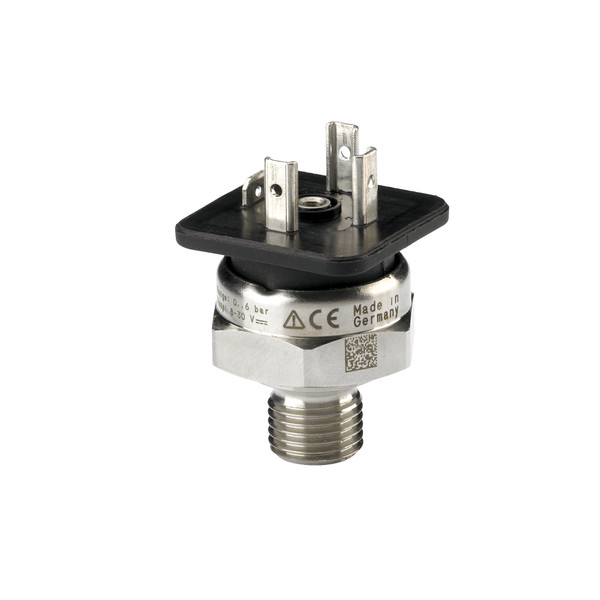

Product name: Pressure transmitter, Type: DST P500, Output signal: Current, Electrical connection: Plug 4-pin
Product details
| Gross weight | 0.06 kg |
| Net weight | 0.05 kg |
| EAN | 5702428017688 |
| Gross weight | 0.06 kg |
| Net weight | 0.05 kg |
| EAN | 5702428017688 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 100 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 212 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
| Burst pressure [bar] | 200 bar |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Plug 4-pin |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN175301-803-A |
| Enclosure rating IP | IP65 |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -30 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -22 °F |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 25 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Response time max. [ms] | 5 ms |
| Specification key | DST P500-2411-A0GB04-1 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 8 V |
| Type | DST P500 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 100 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 212 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
| Burst pressure [bar] | 200 bar |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Plug 4-pin |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN175301-803-A |
| Enclosure rating IP | IP65 |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -30 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -22 °F |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 25 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Response time max. [ms] | 5 ms |
| Specification key | DST P500-2411-A0GB04-1 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 8 V |
| Type | DST P500 |
