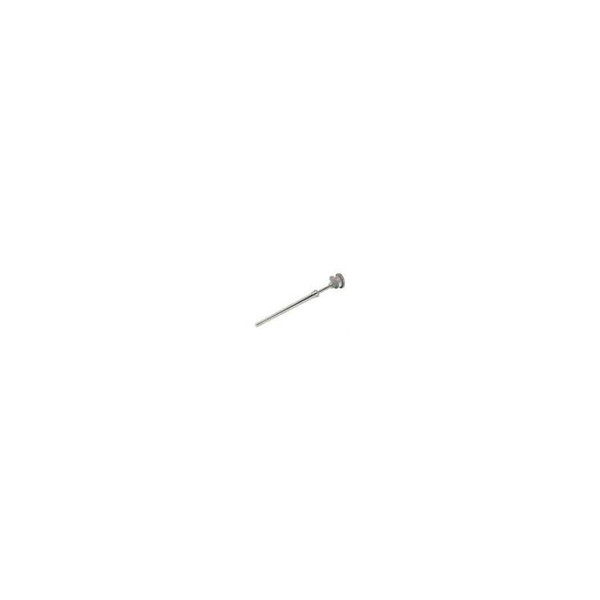

Type Code MBT 5116 , Weight 0.552 Kg , Ambient temp. max. 90 °C , Ambient temp. max. 194 °F , Conn. std. ISO 228 More detailsThe MBT 5116 is a heavy-duty temperature sensor that can be used for measuring and regulating exhaust gas from diesel engines, turbines and compressors within stationary and marine applications. This temperature sensor is based on a standardized Pt100 element, which gives a reliable and accurate measurement. The Pt100 element is a thin film element specially designed for heavy-duty applications up to 600 °C. The measuring insert can be changed even while operating the application. All parts in contact with the media are made of stainless steel AISI 316 Ti. The sensor is constructed to fit where there is limited space. Up to 600°C media temperature Can be used with 2- or 3-wire connections Robust and compact construction with extremely high resistance to shock and vibration according to IEC 68-2-6 Easy exchange of measuring insert Pt 100 thin film technology specially developed for heavy duty applications Can be mounted in all positions Solid drilled protection tube Available with all relevant marine approvals
| Type Code | MBT 5116 |
| Weight | 0.552 Kg |
| Ambient temp. max. | 90 °C |
| Ambient temp. max. | 194 °F |
| Conn. std. | ISO 228 |
| Conn. type | G |
| EAN no. | 5702423118649 |
| Electr. conn. | Type B |
| Electr. conn. size | Pg 16 |
| Encl. | IP65 |
| Ext. length | 3,94 in |
| Ext. length | 100 mm |
| Insert length | 3,94 in |
| Insert length | 100 mm |
| No. of terminals | 3 PC |
| Output sign. | Ohm |
| Process conn. Male/Female | Male |
| Process conn. mat. | Stainless steel |
| Process conn. size | 1/2 |
| Process conn. std. | ISO 228-1-A |
| Process conn. type | G |
| Prot. tube diam. (ø) | 0,55 - 0,71 in |
| Prot. tube diam. (ø) | 14,0 - 18,0 mm |
| Prot. tube mat. | AISI 316 Ti |
| Resistance value | 1 x Pt x 100 |
| Sensor element std. | EN 60751 |
| Sensor element tol. | Class B |
| Sensor Insert | exchangeable |
| Temp. range | -50 - 600 °C |
| Temp. range | -58 - 1112 °F |
| Type designation | MBT 5116-B002-100-00-0000 |
| Wires | 2 PC |
