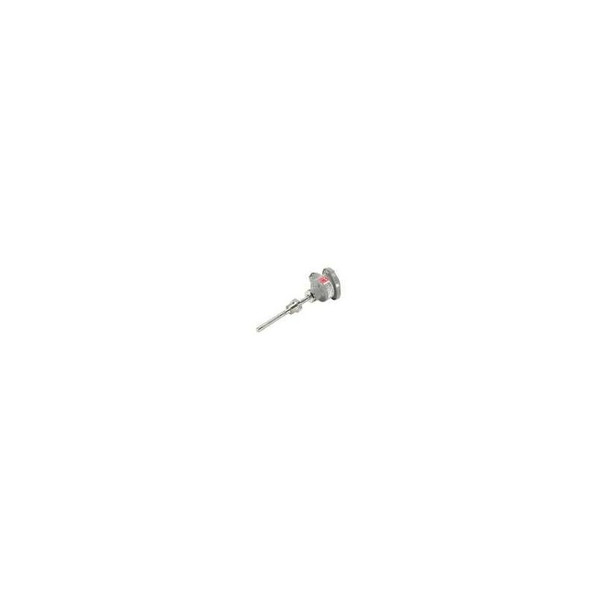

Type Code MBT 5252 , Weight 0.482 Kg , Ambient temp. max. 90 °C , Ambient temp. max. 194 °F , Conn. std. ISO 228 More detailsThe MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request. If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request. For gaseous or liquid media, e.g. air, gas, vapour, water or oil Up to +400° C media temperatures Available with built-in transmitter Available with all relevant marine approvals
| Type Code | MBT 5252 |
| Weight | 0.482 Kg |
| Ambient temp. max. | 90 °C |
| Ambient temp. max. | 194 °F |
| Conn. std. | ISO 228 |
| Conn. type | G |
| EAN no. | 5702423143146 |
| Electr. conn. | Type B |
| Electr. conn. size | Pg 16 |
| Encl. | IP65 |
| Ext. length | 1,97 in |
| Ext. length | 50 mm |
| Insert length | 5,91 in |
| Insert length | 150 mm |
| No. of terminals | 3 PC |
| Output sign. | Ohm |
| Process conn. Male/Female | Male |
| Process conn. mat. | Stainless steel |
| Process conn. size | 3/4 |
| Process conn. std. | ISO 228-1-A |
| Process conn. type | G |
| Prot. tube diam. (ø) | 0,43 in |
| Prot. tube diam. (ø) | 11,0 mm |
| Prot. tube mat. | AISI 316 Ti |
| Resistance value | 1 x Pt x 100 |
| Sensor element std. | EN 60751 |
| Sensor element tol. | Class B |
| Sensor Insert | exchangeable |
| Temp. range | -50 - 400 °C |
| Temp. range | -58 - 752 °F |
| Type designation | MBT 5252-1021-0150-0300-0000 |
| Wires | 2 PC |
