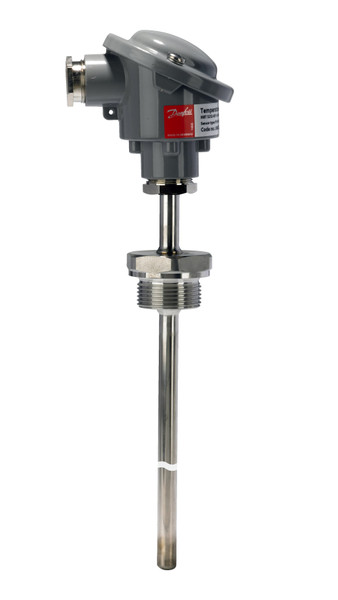

084Z6142 Danfoss Temperature sensor, MBT 5252

Write a Review
SKU:
084Z6142
Availability:
2 - 3 weeks

Product details Gross weight 0.39 kg Net weight 0.38 kg EAN 5702423136759 Gross weight 0.39 kg Net weight 0.38 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.39 kg
Net weight 0.38 kg
EAN 5702423136759
Gross weight 0.39 kg
Net weight 0.38 kg
EAN 5702423136759



Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.15 in
Insertion length [mm] 80 mm
Insertion type Fixed
Number of terminals [pcs] 3 pc
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection Male/Female Male
Process connection material Stainless steel
Process Connections G1/2 , ISO 228-1-A
Product Group ACCESSORIES
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.4 in
Protection tube diameter [mm] 10 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Exchangeable
Supply voltage [V] DC [Max] 35 V
Supply voltage [V] DC [Min] 8 V
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 100 °C
Transmitter setting range [°C] [Min] 0 °C
Transmitter setting range [°F] [Max] 212 °F
Transmitter setting range [°F] [Min] 32 °F
Transmitter type Standard
Type MBT 5252
Type designation MBT 5252-0011-0080-0200-G110
Wires [pcs] 2 pc
Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.15 in
Insertion length [mm] 80 mm
Insertion type Fixed
Number of terminals [pcs] 3 pc
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection Male/Female Male
Process connection material Stainless steel
Process Connections G1/2 , ISO 228-1-A
Product Group ACCESSORIES
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.4 in
Protection tube diameter [mm] 10 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor elem. resistance [Ohm] 100 Ohm
Sensor element [pc] 1 pc
Sensor element standard EN 60751
Sensor element tolerance Class B
Sensor element type Pt
Sensor Insert Exchangeable
Supply voltage [V] DC [Max] 35 V
Supply voltage [V] DC [Min] 8 V
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 100 °C
Transmitter setting range [°C] [Min] 0 °C
Transmitter setting range [°F] [Max] 212 °F
Transmitter setting range [°F] [Min] 32 °F
Transmitter type Standard
Type MBT 5252
Type designation MBT 5252-0011-0080-0200-G110
Wires [pcs] 2 pc
Process Connections: G1/2 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Insertion length [mm]: 80, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B
