Description
Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 305, Electrical connection: Cable, Electrical connection size: 2 wire
Product details
| Gross weight | 0.18 kg |
| Net weight | 0.17 kg |
| EAN | 5702423150229 |
| Gross weight | 0.18 kg |
| Net weight | 0.17 kg |
| EAN | 5702423150229 |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| Insertion type | Variable |
| Output signal | Ohm |
| Packing format | Multi pack |
| Product group | Sensors |

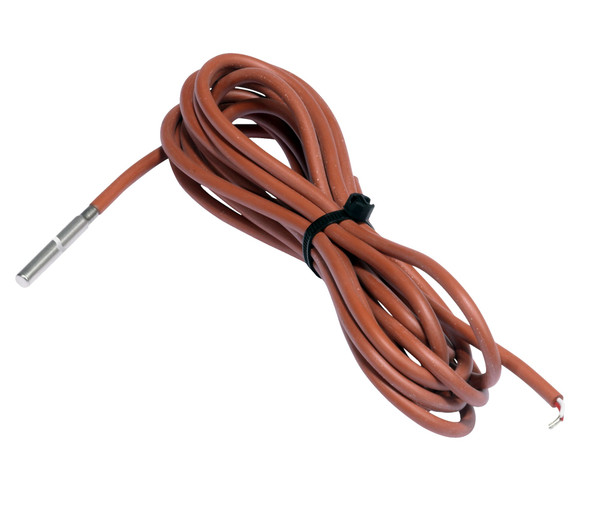

| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 10 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 153 |
| Type designation | MBT 153-2000-0550 |
| Wires [pcs] | 2 pc |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| Insertion type | Variable |
| Output signal | Ohm |
| Packing format | Multi pack |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 10 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 153 |
| Type designation | MBT 153-2000-0550 |
| Wires [pcs] | 2 pc |
Product details
| Gross weight | 0.18 kg |
| Net weight | 0.17 kg |
| EAN | 5702423150229 |
| Gross weight | 0.18 kg |
| Net weight | 0.17 kg |
| EAN | 5702423150229 |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| Insertion type | Variable |
| Output signal | Ohm |
| Packing format | Multi pack |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 10 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 153 |
| Type designation | MBT 153-2000-0550 |
| Wires [pcs] | 2 pc |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| Insertion type | Variable |
| Output signal | Ohm |
| Packing format | Multi pack |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 10 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 153 |
| Type designation | MBT 153-2000-0550 |
| Wires [pcs] | 2 pc |
