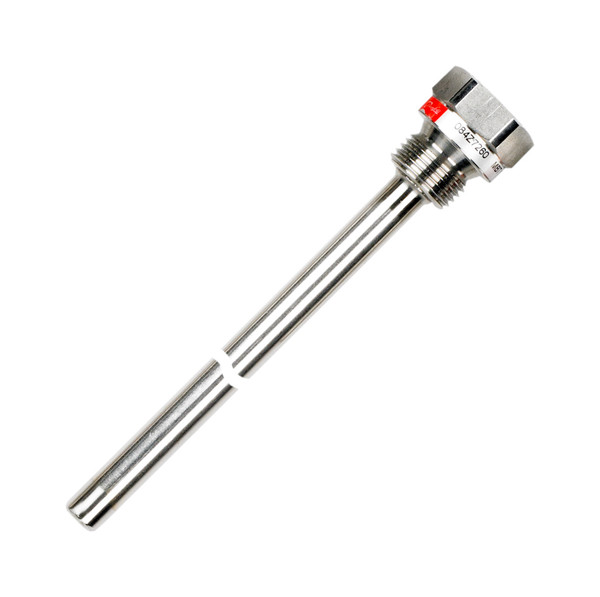

084Z3076 Danfoss Temperature sensor, MBT 120

Write a Review
SKU:
084Z3076
Availability:
2 - 3 weeks

Product details Gross weight 0.11 kg Net weight 0.11 kg EAN 5702423227389 Gross weight 0.11 kg Net weight 0.11 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.11 kg
Net weight 0.11 kg
EAN 5702423227389
Gross weight 0.11 kg
Net weight 0.11 kg
EAN 5702423227389



Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Internal connection size 1/2
Internal connection type G
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.43 in
Protection tube diameter [mm] 11 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 120
Type designation MBT 120-630-100-C
Used for product MBT 3560, MBT 5560
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Internal connection size 1/2
Internal connection type G
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.43 in
Protection tube diameter [mm] 11 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 120
Type designation MBT 120-630-100-C
Used for product MBT 3560, MBT 5560
Process Connections: G1/2 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Insertion length [mm]: 100, Protection tube material: AISI 316 Ti

Product details

Gross weight 0.11 kg
Net weight 0.11 kg
EAN 5702423227389
Gross weight 0.11 kg
Net weight 0.11 kg
EAN 5702423227389



Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Internal connection size 1/2
Internal connection type G
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.43 in
Protection tube diameter [mm] 11 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 120
Type designation MBT 120-630-100-C
Used for product MBT 3560, MBT 5560
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Internal connection size 1/2
Internal connection type G
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G1/2 , ISO 228-1-A
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.43 in
Protection tube diameter [mm] 11 mm
Protection tube material AISI 316 Ti
Quantity per packing format 20 pc
Temperature range [°C] [Max] 200 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 392 °F
Temperature range [°F] [Min] -58 °F
Type MBT 120
Type designation MBT 120-630-100-C
Used for product MBT 3560, MBT 5560
×
