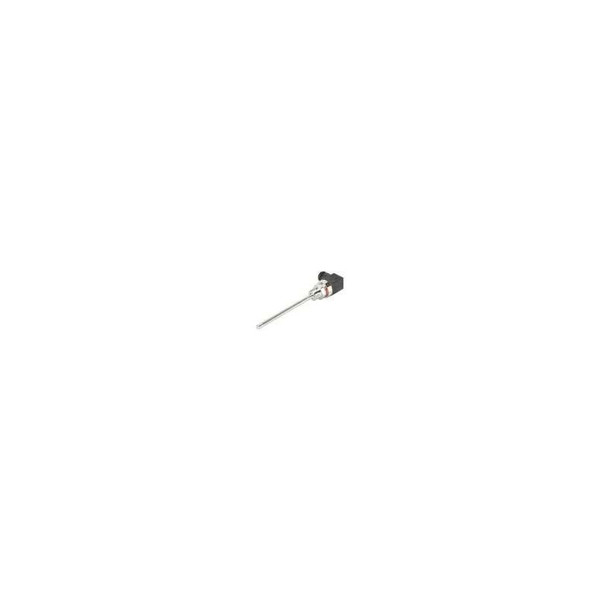

Type Code MBT 5260 , Weight 0.143 Kg , Ambient temp. max. 70 °C , Ambient temp. max. 158 °F , Conn. mat. Acidproof steel More detailsThe MBT 5260 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5260 can also be delivered with NTC/PTC elements on request. The measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5260 is equipped with a DIN 43650 plug as standard, but can be delivered with M12 or DIN 72585 Bayonet on request For gaseous or liquid media, e.g. air, gas, vapour, water or oil Up to +200° C media temperatures Pt100 or Pt1000 resistance element Can be used with 2- or 3-wire connections Gold plated male and female connector Fixed measuring insert Available with all relevant marine approvals
| Type Code | MBT 5260 |
| Weight | 0.143 Kg |
| Ambient temp. max. | 70 °C |
| Ambient temp. max. | 158 °F |
| Conn. mat. | Acidproof steel |
| Conn. type | G |
| EAN no. | 5702423293803 |
| Electr. conn. Male/Female | Male |
| Electr. conn. | M12 x 1 |
| Electr. conn. size | 4 pin |
| Electr. conn. std. | EN 60947-5-2 |
| Encl. | IP65 |
| Insert length | 3,94 in |
| Insert length | 100 mm |
| Output sign. | Ohm |
| Process conn. Male/Female | Male |
| Process conn. mat. | Stainless steel |
| Process conn. size | 1/2 |
| Process conn. std. | ISO 228-1-A |
| Process conn. type | G |
| Prot. tube diam. (ø) | 0,31 in |
| Prot. tube diam. (ø) | 8,0 mm |
| Prot. tube mat. | AISI 316 Ti |
| Resistance value | 1 x Pt x 100 |
| Sensor element std. | EN 60751 |
| Sensor element tol. | Class B |
| Sensor Insert | fixed |
| Temp. range | -50 - 150 °C |
| Temp. range | -58 - 302 °F |
| Type designation | MBT 5260-1000-100-420 |
| Wires | 4 PC |
