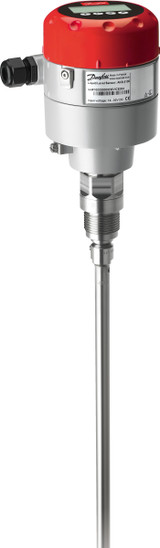

Description
Design: Coaxial version, Connection size [in]: 3/4, Connection type: NPT, Insertion length [mm]: 1651, Supply voltage [V] DC [Min]: 14.00, Supply voltage [V] DC [Max]: 30.00
Product details
| Gross weight | 7.28 kg |
| Net weight | 0.01 kg |
| EAN | 5702428869836 |
| Gross weight | 7.28 kg |
| Net weight | 0.01 kg |
| EAN | 5702428869836 |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 176 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Connection size [in] | 3/4 |
| Connection type | NPT |
| Design | Coaxial version |
| Enclosure rating IP | IP67 |
| Insertion length [in] | 65 in |
| Insertion length [mm] | 1651 mm |
| Load resistance max. [Ohm] | 500 Ohm |
| Max. Working Pressure [bar] | 100 bar |
| Max. Working Pressure [psig] | 1450 psig |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Single pack |
| Parts included | HMI |
| Power consumption [W] | 0.7 W |
| Product description | Liquid Level Sensor |
| Product group | Sensors |
| Product name | Liquid level sensor |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 14 V |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | AKS 4100 U |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 176 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Connection size [in] | 3/4 |
| Connection type | NPT |
| Design | Coaxial version |
| Enclosure rating IP | IP67 |
| Insertion length [in] | 65 in |
| Insertion length [mm] | 1651 mm |
| Load resistance max. [Ohm] | 500 Ohm |
| Max. Working Pressure [bar] | 100 bar |
| Max. Working Pressure [psig] | 1450 psig |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Single pack |
| Parts included | HMI |
| Power consumption [W] | 0.7 W |
| Product description | Liquid Level Sensor |
| Product group | Sensors |
| Product name | Liquid level sensor |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 14 V |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | AKS 4100 U |
