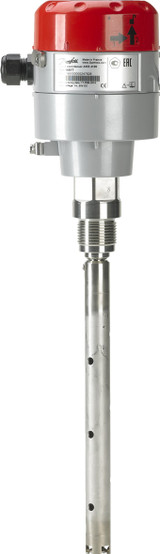

084H4537 Danfoss Liquid level sensor, AKS 4100 U

Write a Review
SKU:
084H4537
Availability:
2 - 3 weeks

REQUEST A QUOTE

Product details Gross weight 2.82 kg Net weight 2.12 kg EAN 5702428934053 Gross weight 2.82 kg Net weight 2.12 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 2.82 kg
Net weight 2.12 kg
EAN 5702428934053
Gross weight 2.82 kg
Net weight 2.12 kg
EAN 5702428934053



Ambient temperature range [°C] [Max] 80 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 176 °F
Ambient temperature range [°F] [Min] -40 °F
Connection size [in] 3/4
Connection type NPT
Design Coaxial version D22
Enclosure rating IP IP67
Insertion length [in] 11 in
Insertion length [mm] 279 mm
Load resistance max. [Ohm] 500 Ohm
Max. Working Pressure [bar] 100 bar
Max. Working Pressure [psig] 1450 psig
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Single pack
Power consumption [W] 0.7 W
Product description Liquid Level Sensor
Product group Sensors
Product name Liquid level sensor
Quantity per packing format 1 pc
Refrigerants R717
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 14 V
Temperature range [°C] [Max] 100 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 212 °F
Temperature range [°F] [Min] -76 °F
Type AKS 4100 U
Ambient temperature range [°C] [Max] 80 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 176 °F
Ambient temperature range [°F] [Min] -40 °F
Connection size [in] 3/4
Connection type NPT
Design Coaxial version D22
Enclosure rating IP IP67
Insertion length [in] 11 in
Insertion length [mm] 279 mm
Load resistance max. [Ohm] 500 Ohm
Max. Working Pressure [bar] 100 bar
Max. Working Pressure [psig] 1450 psig
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Single pack
Power consumption [W] 0.7 W
Product description Liquid Level Sensor
Product group Sensors
Product name Liquid level sensor
Quantity per packing format 1 pc
Refrigerants R717
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 14 V
Temperature range [°C] [Max] 100 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 212 °F
Temperature range [°F] [Min] -76 °F
Type AKS 4100 U
Design: Coaxial version D22, Connection size [in]: 3/4, Connection type: NPT, Insertion length [mm]: 279, Supply voltage [V] DC [Min]: 14.00, Supply voltage [V] DC [Max]: 30.00
