Description

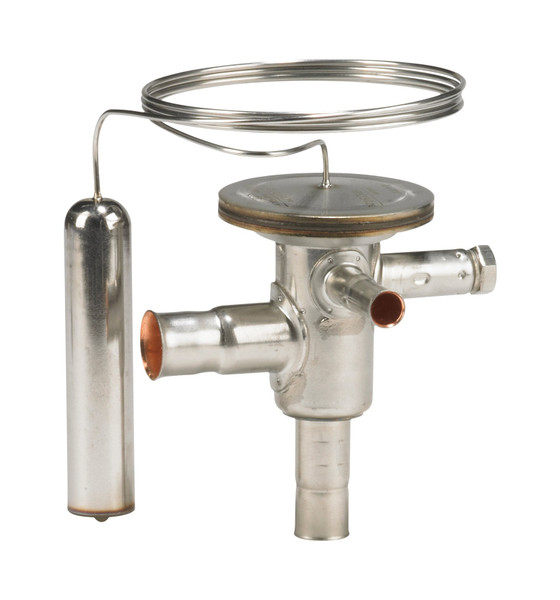

Product name: Hot gas bypass regulator, Type: TCHE, Refrigerants: R134a/R513A, Inlet size [mm]: 10.00, Inlet connection type: SOLDER, ODF, Outlet size [mm]: 12.00, Outlet connection type: SOLDER, ODF, Orifice capacities [TR]: 1.00, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.2 kg |
| Net weight | 0.18 kg |
| EAN | 5702428942065 |
| Gross weight | 0.2 kg |
| Net weight | 0.18 kg |
| EAN | 5702428942065 |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 35 in |
| Capillary tube length [mm] | 900 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Angleway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | II |
| Identical product | 068U4560 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| Orifice capacities [kW] | 3.4 kW |
| Orifice capacities [TR] | 1 tons |
| Orifice size | 4 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TCHE |
| Product group | Press. and temp. regul. valves |
| Product name | Hot gas bypass regulator |
| Quantity per packing format | 20 pc |
| Refrigerants | R134a/R513A |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 5 °C |
| Temperature range [°C] [Min] | -5 °C |
| Temperature range [°F] [Max] | 41 °F |
| Temperature range [°F] [Min] | 23 °F |
| Type | TCHE |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 35 in |
| Capillary tube length [mm] | 900 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Angleway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | II |
| Identical product | 068U4560 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| Orifice capacities [kW] | 3.4 kW |
| Orifice capacities [TR] | 1 tons |
| Orifice size | 4 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TCHE |
| Product group | Press. and temp. regul. valves |
| Product name | Hot gas bypass regulator |
| Quantity per packing format | 20 pc |
| Refrigerants | R134a/R513A |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 5 °C |
| Temperature range [°C] [Min] | -5 °C |
| Temperature range [°F] [Max] | 41 °F |
| Temperature range [°F] [Min] | 23 °F |
| Type | TCHE |
