Description

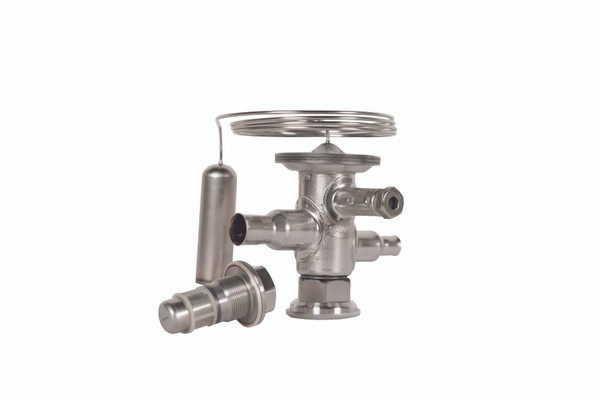

Product name: Thermostatic expansion valve, Type: TUAE, Refrigerants: R134a/R513A, Inlet size [mm]: 10.00, Inlet connection type: SOLDER, ODF, Outlet size [mm]: 12.00, Outlet connection type: SOLDER, ODF, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.19 kg |
| Net weight | 0.15 kg |
| EAN | 5702422182160 |
| Gross weight | 0.19 kg |
| Net weight | 0.15 kg |
| EAN | 5702422182160 |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Bi-flow with orifice 1-8 |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | II |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TUA |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Refrigerants | R134a/R513A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TUAE |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Flow direction | Bi-flow with orifice 1-8 |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | II |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TUA |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Refrigerants | R134a/R513A |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TUAE |
