Description
Refrigerants: R134a;R22;R401A;R402A;R404A;R407A;R407B;R407C;R407F;R409A;R410A;R421A;R502;R507;R717
Product details
| Gross weight | 3.4 kg |
| Net weight | 3 kg |
| EAN | 5702422019923 |
| Gross weight | 3.4 kg |
| Net weight | 3 kg |
| EAN | 5702422019923 |
| Body material | Cast iron GGG40.3 |
| Bulb temperature max. [ºC] | 150 °C |
| Bulb temperature max. [ºF] | 302 °F |
| Capillary tube length [in] | 192 in |
| Capillary tube length [mm] | 5000 mm |
| Category | Art. 3, par. 3 |
| Comments | GASKET IS NON ASBESTOS |
| Connection size [in] | 3/4 in |
| Connection type | Weld flange |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | Gasket is non asbestos |
| Max. test pressure [bar] | 30 bar |
| Max. test pressure [psig] | 435 psig |
| Max. Working Pressure [bar] | 20 bar |
| Max. Working Pressure [psig] | 290 psig |
| P band [ºC] | 20 °C |
| P band [ºF] | 68 °F |
| Packing format | Single pack |
| Pressure equalization | Internally equalized |
| Product accessories | Flanges |

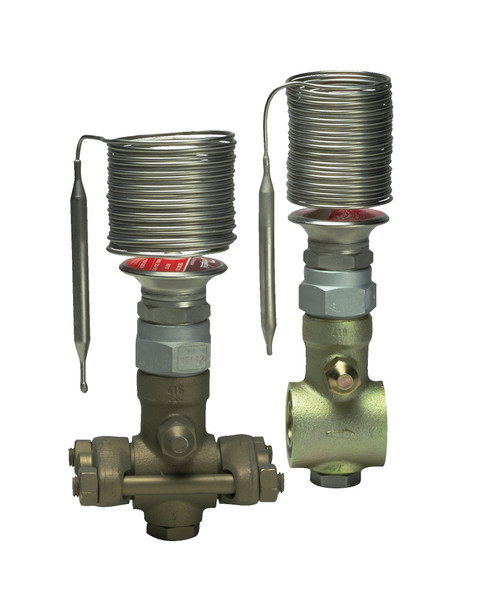

| Product description | Thermostatic Injec. Valve |
| Product group | Expansion valves |
| Product name | Desuperheating valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | Subcooling=7,2 ° tevap=39,2 °F |
| Rated cap. conditions [SI] | Subcooling=4K tevap=4 °C |
| Rated capacity R717 [kW] | 106 kW |
| Rated capacity R717 [TR] | 30.3 tons |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | TXV spare parts |
| Temperature range [°C] [Max] | 130 °C |
| Temperature range [°C] [Min] | 90 °C |
| Temperature range [°F] [Max] | 266 °F |
| Temperature range [°F] [Min] | 194 °F |
| Type | TEAT 85-33 |
| Body material | Cast iron GGG40.3 |
| Bulb temperature max. [ºC] | 150 °C |
| Bulb temperature max. [ºF] | 302 °F |
| Capillary tube length [in] | 192 in |
| Capillary tube length [mm] | 5000 mm |
| Category | Art. 3, par. 3 |
| Comments | GASKET IS NON ASBESTOS |
| Connection size [in] | 3/4 in |
| Connection type | Weld flange |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | Gasket is non asbestos |
| Max. test pressure [bar] | 30 bar |
| Max. test pressure [psig] | 435 psig |
| Max. Working Pressure [bar] | 20 bar |
| Max. Working Pressure [psig] | 290 psig |
| P band [ºC] | 20 °C |
| P band [ºF] | 68 °F |
| Packing format | Single pack |
| Pressure equalization | Internally equalized |
| Product accessories | Flanges |
| Product description | Thermostatic Injec. Valve |
| Product group | Expansion valves |
| Product name | Desuperheating valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | Subcooling=7,2 ° tevap=39,2 °F |
| Rated cap. conditions [SI] | Subcooling=4K tevap=4 °C |
| Rated capacity R717 [kW] | 106 kW |
| Rated capacity R717 [TR] | 30.3 tons |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | TXV spare parts |
| Temperature range [°C] [Max] | 130 °C |
| Temperature range [°C] [Min] | 90 °C |
| Temperature range [°F] [Max] | 266 °F |
| Temperature range [°F] [Min] | 194 °F |
| Type | TEAT 85-33 |
