Description

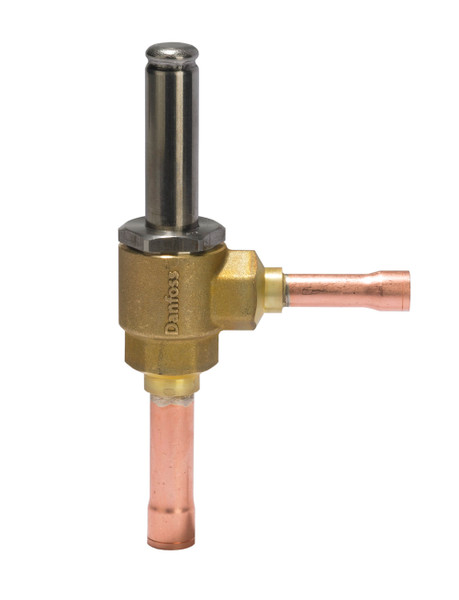

Type: AKV 10PS7, Inlet size [mm]: 12.00, Outlet size [mm]: 16.00, Refrigerants: R1233zd;R1234yf;R1234ze;R1270;R134a;R22;R23;R290;R32;R404A;R407A;R407C;R407F;R407H;R410A;R422B;R422D;R438A;R444B;R448A;R449A;R449B;R450A;R452A;R452B;R134a/R513A;R454B;R454C;R455A;R463A;R507;R513A;R513B;R515A;R515B;R516A;R600;R600a;R744
Product details
| Gross weight | 0.39 kg |
| Net weight | 0.27 kg |
| EAN | 5702428923422 |
| Gross weight | 0.39 kg |
| Net weight | 0.27 kg |
| EAN | 5702428923422 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | C UL US LISTED EAC |
| Coil | No |
| Cv value [gal/min] | 0.236 gal/min |
| Direction | Angleway |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 0.204 m3/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -50 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | -58 °F |
| MinODP [bar] | 0.1 bar |
| MinODP [psi] | 1.45 psi |
| MOPD[bar/psi] | 35 bar/505 psi Coil Dependend |
| Orifice size [mm] | 3 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Product family name | AKV 10PS |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 18 pc |
| Rated capacity R22 [kW] | 16 kW |
| Refrigerants | R407A R407F R422B R422D R448A R449A R449B R450A R452A R513A R1233zd R1234yf R1234ze R1270 R290 R32 R407H R438A R444B R452B R134a/R513A R454B R454C R455A R463A R513B R515A R515B R516A R600 R600a R134a R22 R23 R404A R407C R410A R507 R744 |
| Type | AKV 10PS7 |
| Type designation | Electric expansion valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | C UL US LISTED EAC |
| Coil | No |
| Cv value [gal/min] | 0.236 gal/min |
| Direction | Angleway |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 0.204 m3/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -50 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | -58 °F |
| MinODP [bar] | 0.1 bar |
| MinODP [psi] | 1.45 psi |
| MOPD[bar/psi] | 35 bar/505 psi Coil Dependend |
| Orifice size [mm] | 3 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Product family name | AKV 10PS |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 18 pc |
| Rated capacity R22 [kW] | 16 kW |
| Refrigerants | R407A R407F R422B R422D R448A R449A R449B R450A R452A R513A R1233zd R1234yf R1234ze R1270 R290 R32 R407H R438A R444B R452B R134a/R513A R454B R454C R455A R463A R513B R515A R515B R516A R600 R600a R134a R22 R23 R404A R407C R410A R507 R744 |
| Type | AKV 10PS7 |
| Type designation | Electric expansion valve |
