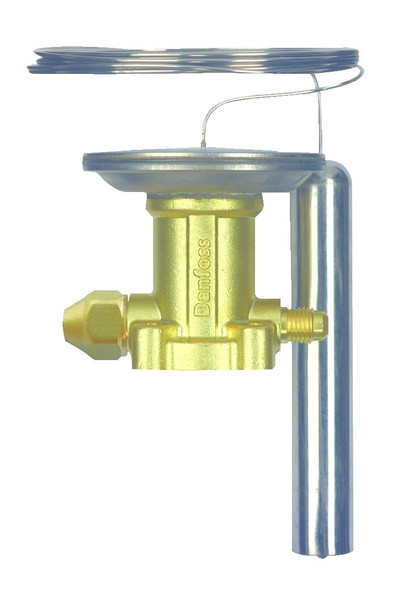

067B3420 Danfoss Element for expansion valve, TE 5

Write a Review
SKU:
067B3420
Availability:
2 - 3 weeks

REQUEST A QUOTE

Product details Gross weight 0.55 kg Net weight 0.46 kg EAN 5702428148924 Gross weight 0.55 kg Net weight 0.46 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.55 kg
Net weight 0.46 kg
EAN 5702428148924
Gross weight 0.55 kg
Net weight 0.46 kg
EAN 5702428148924



Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 118 in
Capillary tube length [mm] 3000 mm
Equalization connection type SOLDER, ODF
Equalization size [in] 1/4 IN
Max. Working Pressure [bar] 28 bar
Max. Working Pressure [psig] 400 psig
Packing format Multi pack
Parts included Bulb strap
Gasket
O-ring
Parts Program name TE 5
Pressure equalization Externally equalized
Product accessories TXV accessories
Product description Thermostatic Expans. Valve
Product family name TE 5 - 55
Product group Expansion valves
Product name Element for expansion valve
Quantity per packing format 12 pc
Refrigerants R22/R407C
Serviceable TXV spare parts
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type TE 5
Type designation Element
Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 118 in
Capillary tube length [mm] 3000 mm
Equalization connection type SOLDER, ODF
Equalization size [in] 1/4 IN
Max. Working Pressure [bar] 28 bar
Max. Working Pressure [psig] 400 psig
Packing format Multi pack
Parts included Bulb strap
Gasket
O-ring
Parts Program name TE 5
Pressure equalization Externally equalized
Product accessories TXV accessories
Product description Thermostatic Expans. Valve
Product family name TE 5 - 55
Product group Expansion valves
Product name Element for expansion valve
Quantity per packing format 12 pc
Refrigerants R22/R407C
Serviceable TXV spare parts
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type TE 5
Type designation Element
Product name: Element for expansion valve, Type: TE 5, Pressure equalization: Externally equalized

Product details

Gross weight 0.55 kg
Net weight 0.46 kg
EAN 5702428148924
Gross weight 0.55 kg
Net weight 0.46 kg
EAN 5702428148924



Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 118 in
Capillary tube length [mm] 3000 mm
Equalization connection type SOLDER, ODF
Equalization size [in] 1/4 IN
Max. Working Pressure [bar] 28 bar
Max. Working Pressure [psig] 400 psig
Packing format Multi pack
Parts included Bulb strap
Gasket
O-ring
Parts Program name TE 5
Pressure equalization Externally equalized
Product accessories TXV accessories
Product description Thermostatic Expans. Valve
Product family name TE 5 - 55
Product group Expansion valves
Product name Element for expansion valve
Quantity per packing format 12 pc
Refrigerants R22/R407C
Serviceable TXV spare parts
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type TE 5
Type designation Element
Approval EAC
LLC CDC TYSK
Body material Brass
Capillary tube length [in] 118 in
Capillary tube length [mm] 3000 mm
Equalization connection type SOLDER, ODF
Equalization size [in] 1/4 IN
Max. Working Pressure [bar] 28 bar
Max. Working Pressure [psig] 400 psig
Packing format Multi pack
Parts included Bulb strap
Gasket
O-ring
Parts Program name TE 5
Pressure equalization Externally equalized
Product accessories TXV accessories
Product description Thermostatic Expans. Valve
Product family name TE 5 - 55
Product group Expansion valves
Product name Element for expansion valve
Quantity per packing format 12 pc
Refrigerants R22/R407C
Serviceable TXV spare parts
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
Type TE 5
Type designation Element
×
