Description

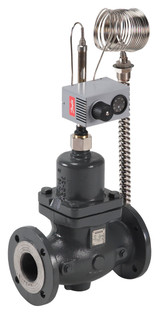

VFGS2 PN25 50/32 2-way flange flow/ret
Product details
| Gross weight | 18.4 kg |
| Net weight | 17.59 kg |
| EAN | 5702421803653 |
| Gross weight | 18.4 kg |
| Net weight | 17.59 kg |
| EAN | 5702421803653 |
| Application | Steam |
| Cavitation factor | 0.5 |
| Connection types | Flange |
| Description | VFGS2 PN25 50/32 2-way flange flow/ret |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 32 m3/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Steam |
| Pressure nominal [bar] | 25 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 12 mm |
| Type | VFGS 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Application | Steam |
| Cavitation factor | 0.5 |
| Connection types | Flange |
| Description | VFGS2 PN25 50/32 2-way flange flow/ret |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 32 m3/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Steam |
| Pressure nominal [bar] | 25 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 12 mm |
| Type | VFGS 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
