Description

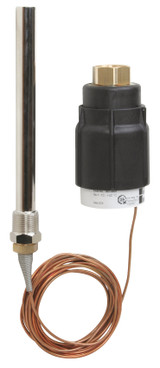

AVT PN25 -10-40/5m 210mm R3/4 Brass pck
Product details
| Gross weight | 1.68 kg |
| Net weight | 1.68 kg |
| EAN | 5702421544235 |
| Gross weight | 1.68 kg |
| Net weight | 1.68 kg |
| EAN | 5702421544235 |
| Ambient temperature [°C] [Max] | 70 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR (TW)700 |
| Capillary tube length [m] | 5 m |
| Description | AVT PN25 -10-40/5m 210mm R3/4 Brass pck |
| Function | Temp. controller |
| Gain Ks | 0.3 |
| Impulse tube material | Copper mat. No 2.0090 |
| Manufacturer's name | Danfoss |
| Media temperature at sensor [°C] [Max] | 90 °C |
| Mounting version | Free |
| Product group | Actuators - Temperature |
| Sensor connection | M22x1 / R3/4 ext thread acc. DIN 2999 |
| Sensor pocket length [mm] | 215 mm |
| Sensor pocket material | Brass |
| Temperature sensor diameter [mm] | 16 mm |
| Temperature sensor length [mm] | 210 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 40 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Time constant [sec] | 50 s |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVT |
| Ambient temperature [°C] [Max] | 70 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR (TW)700 |
| Capillary tube length [m] | 5 m |
| Description | AVT PN25 -10-40/5m 210mm R3/4 Brass pck |
| Function | Temp. controller |
| Gain Ks | 0.3 |
| Impulse tube material | Copper mat. No 2.0090 |
| Manufacturer's name | Danfoss |
| Media temperature at sensor [°C] [Max] | 90 °C |
| Mounting version | Free |
| Product group | Actuators - Temperature |
| Sensor connection | M22x1 / R3/4 ext thread acc. DIN 2999 |
| Sensor pocket length [mm] | 215 mm |
| Sensor pocket material | Brass |
| Temperature sensor diameter [mm] | 16 mm |
| Temperature sensor length [mm] | 210 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 40 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Time constant [sec] | 50 s |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVT |
