Description

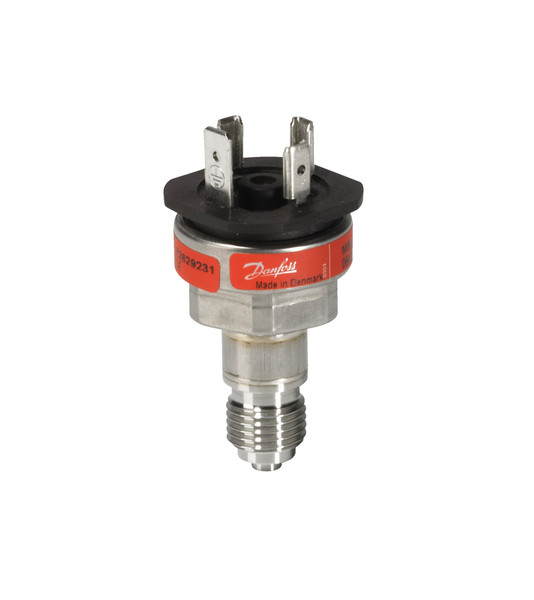

Product name: Pressure transmitter, Type: MBS 1900, Pressure range [psi]: 0.00 - 145.04, Pressure range [bar]: 0.00 - 10.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection: Plug
Product details
Gross weight | 0.05 kg |
Net weight | 0.05 kg |
EAN | 5702423273034 |
Gross weight | 0.05 kg |
Net weight | 0.05 kg |
EAN | 5702423273034 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy @ ref. temp. ±FS [%] | 1 % |
Accuracy, typical +/- FS [%] | 1 % |
Adj. zero point and span | No |
Ambient temperature range [°C] [Max] | 80 °C |
Ambient temperature range [°C] [Min] | -20 °C |
Ambient temperature range [°F] [Max] | 176 °F |
Ambient temperature range [°F] [Min] | -4 °F |
Approval | C UR US |
Approval comments | UL-873 |
Compensated temp. range [°C] [Max] | 80 °C |
Compensated temp. range [°C] [Min] | 0 °C |
Compensated temp. range [°F] [Max] | 176 °F |
Compensated temp. range [°F] [Min] | 32 °F |
Electrical conn. Male/Female | Male |
Electrical connection | Plug |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
Fault Monitoring Demand | No |
Flush diaphragm | No |
Intrinsically safe | No |
Medium temperature range [°C] [Max] | 80 °C |
Medium temperature range [°C] [Min] | 0 °C |
Medium temperature range [°F] [Max] | 176 °F |
Medium temperature range [°F] [Min] | 32 °F |
Non-linearity BFSL ±FS [%] | 0.5 % |
Output signal [mA] [Max] | 20 mA |
Output signal [mA] [Min] | 4 mA |
Overload pressure max. [bar] | 75 bar |
Overload pressure max. [psi] | 1088 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 24 mm |
Pressure connection notes | A |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [Max] | 10 bar |
Pressure range [bar] [Min] | 0 bar |
Pressure range [psi] [Max] | 145.04 psi |
Pressure range [psi] [Min] | 0 psi |
Pressure unit reference | Gauge (relative) |
Product group | Sensors |
Product name | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 45 pc |
Reference temperature [°C] | 20 °C |
Reference temperature [°F] | 68 °F |
Response time max. [ms] | 4 ms |
Specification key | MBS 1900-2011-A0AB04-0 |
Supply voltage [V] DC [Max] | 28 V |
Supply voltage [V] DC [Min] | 9 V |
TEB inside CTR ±FS [%] | 3 % |
Type | MBS 1900 |
