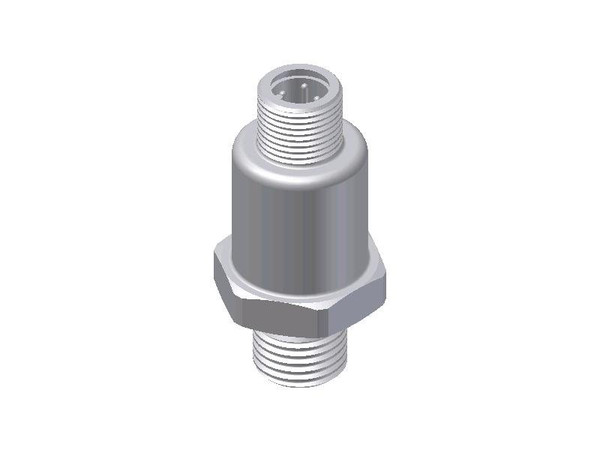

063G1785 Danfoss Pressure transmitter, MBS 1250

Write a Review
SKU:
063G1785
Availability:
2 - 3 weeks

Product details Gross weight 0.06 kg Net weight 0.05 kg EAN 5702428834179 Gross weight 0.06 kg Net weight 0.05 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428834179
Gross weight 0.06 kg
Net weight 0.05 kg
EAN 5702428834179



+ output Pin 2
+ supply Pin 1
- common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36000 psig
Comments PE ON PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 4.5 V
Output signal [V] [Min] 0.5 V
Overload pressure max. [bar] 750 bar
Overload pressure max. [psig] 10000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.93 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1250-341C-C1GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1250
+ output Pin 2
+ supply Pin 1
- common Pin 3
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36000 psig
Comments PE ON PIN 4
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Au coated
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Voltage
Output signal [V] [Max] 4.5 V
Output signal [V] [Min] 0.5 V
Overload pressure max. [bar] 750 bar
Overload pressure max. [psig] 10000 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.93 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1250-341C-C1GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1250
Product name: Pressure transmitter, Type: MBS 1250, Pressure range [psi]: 0.00 - 3625.93, Pressure range [bar]: 0.00 - 250.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [V]: 0.5000 - 4.5000, Electrical connection size: 4 pin, Electrical connection: M12 x 1
