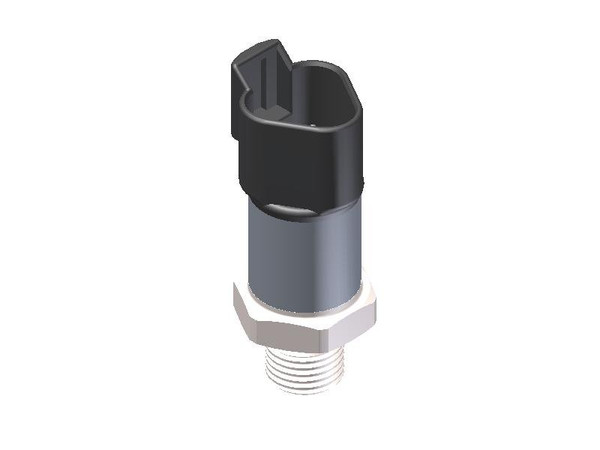

063G1635 Danfoss Pressure transmitter, MBS 1250

Write a Review
SKU:
063G1635
Availability:
2 - 3 weeks

Product details Gross weight 0.07 kg Net weight 0.05 kg EAN 5702423301447 Gross weight 0.07 kg Net weight 0.05 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.07 kg
Net weight 0.05 kg
EAN 5702423301447
Gross weight 0.07 kg
Net weight 0.05 kg
EAN 5702423301447



+ output Pin C
+ supply Pin A
- common Pin B
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36000 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Deutsch
Electrical connection size 3 pin
Enclosure rating IP IP67
Identical product 063G4635
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Ratio metric
Overload pressure max. [bar] 750 bar
Overload pressure max. [psig] 10800 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.93 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Ratiometric [V] [Max] 4.5 V
Ratiometric [V] [Min] 0.5 V
Response time max. [ms] 1 ms
Specification key MBS 1250-3416-C7GB04
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
Type MBS 1250
+ output Pin C
+ supply Pin A
- common Pin B
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36000 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Deutsch
Electrical connection size 3 pin
Enclosure rating IP IP67
Identical product 063G4635
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Ratio metric
Overload pressure max. [bar] 750 bar
Overload pressure max. [psig] 10800 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.93 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 48 pc
Ratiometric [V] [Max] 4.5 V
Ratiometric [V] [Min] 0.5 V
Response time max. [ms] 1 ms
Specification key MBS 1250-3416-C7GB04
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
Type MBS 1250
Product name: Pressure transmitter, Type: MBS 1250, Pressure range [psi]: 0.00 - 3625.93, Pressure range [bar]: 0.00 - 250.00, Pressure connection size: 1/4, Pressure connection type: G, Electrical connection size: 3 pin, Electrical connection: Deutsch
