Description
Factory setting [bar]: 8.00, Number of Phases: 1, P band max. [bar]: 6.0, Regulation range [bar] Pe [Min]: 8.00, Regulation range [bar] Pe [Max]: 18.00, Type designation: XGE-2C
Product details
| Gross weight | 0.27 kg |
| Net weight | 0.26 kg |
| EAN | 5702428275545 |
| Gross weight | 0.27 kg |
| Net weight | 0.26 kg |
| EAN | 5702428275545 |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Enclosure rating IP | IP65 |
| Factory setting [bar] | 8 bar |
| Factory setting [psig] | 116 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | CLOSED |
| Max. current output/phase [A] | 3 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] | 35%@60Hz |
| Number of Phases | 1 |
| P band max. [bar] | 6 bar |
| P band max. [psi] | 87 psi |
| Packing format | Multi pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product group | Electronic controllers |

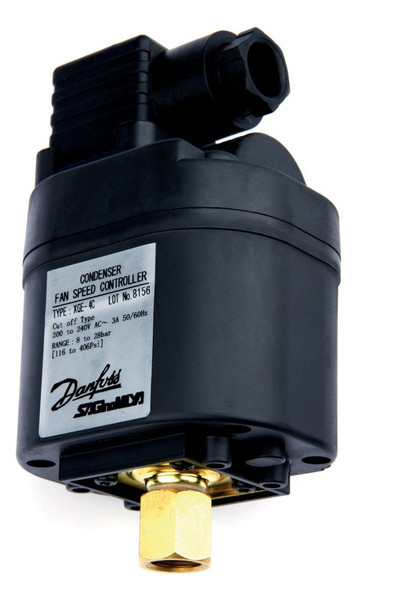

| Product name | Fan speed controller |
| Quantity per packing format | 100 pc |
| Refrigerants | R134a R22 R404A R407C R407F R448A R449A R450A R452A R513A R407H R449B |
| Regulation range [bar] Pe [Max] | 18 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [MPa] Pe [Max] | 1.8 MPa |
| Regulation range [MPa] Pe [Min] | 0.8 MPa |
| Regulation range [psig] Pe [Max] | 261 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Supply voltage [V] AC [Max] | 240 V |
| Supply voltage [V] AC [Min] | 200 V |
| Type | XGE |
| Type designation | XGE-2C |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Enclosure rating IP | IP65 |
| Factory setting [bar] | 8 bar |
| Factory setting [psig] | 116 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | CLOSED |
| Max. current output/phase [A] | 3 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] | 35%@60Hz |
| Number of Phases | 1 |
| P band max. [bar] | 6 bar |
| P band max. [psi] | 87 psi |
| Packing format | Multi pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product group | Electronic controllers |
| Product name | Fan speed controller |
| Quantity per packing format | 100 pc |
| Refrigerants | R134a R22 R404A R407C R407F R448A R449A R450A R452A R513A R407H R449B |
| Regulation range [bar] Pe [Max] | 18 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [MPa] Pe [Max] | 1.8 MPa |
| Regulation range [MPa] Pe [Min] | 0.8 MPa |
| Regulation range [psig] Pe [Max] | 261 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Supply voltage [V] AC [Max] | 240 V |
| Supply voltage [V] AC [Min] | 200 V |
| Type | XGE |
| Type designation | XGE-2C |
