Description

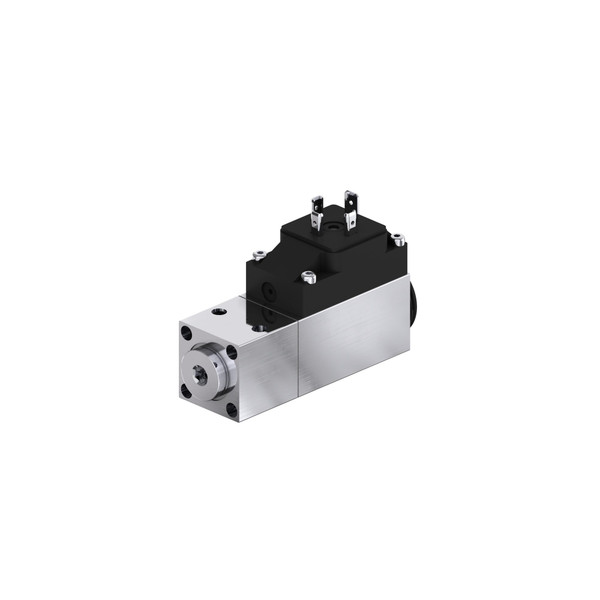

Product name: Pressure switch, Type: MBC 5100, Reset function: Auto, Contact function: SPDT, Regulation range [MPa] Pe: 0.50 - 2.00, Regulation range [bar] Pe: 5.00 - 20.00, Pressure connection size: 1/4, Pressure connection type: G, Pressure connection notes: With flange
Product details
| Gross weight | 0.28 kg |
| Net weight | 0.23 kg |
| EAN | 5702423269846 |
| Gross weight | 0.28 kg |
| Net weight | 0.23 kg |
| EAN | 5702423269846 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK CMIM |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | Low pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 20 bar |
| Regulation range [bar] Pe [Min] | 5 bar |
| Regulation range [MPa] Pe [Max] | 2 MPa |
| Regulation range [MPa] Pe [Min] | 0.5 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 3231-0DB04 |
| Type | MBC 5100 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK CMIM |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | Low pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 20 bar |
| Regulation range [bar] Pe [Min] | 5 bar |
| Regulation range [MPa] Pe [Max] | 2 MPa |
| Regulation range [MPa] Pe [Min] | 0.5 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 3231-0DB04 |
| Type | MBC 5100 |
