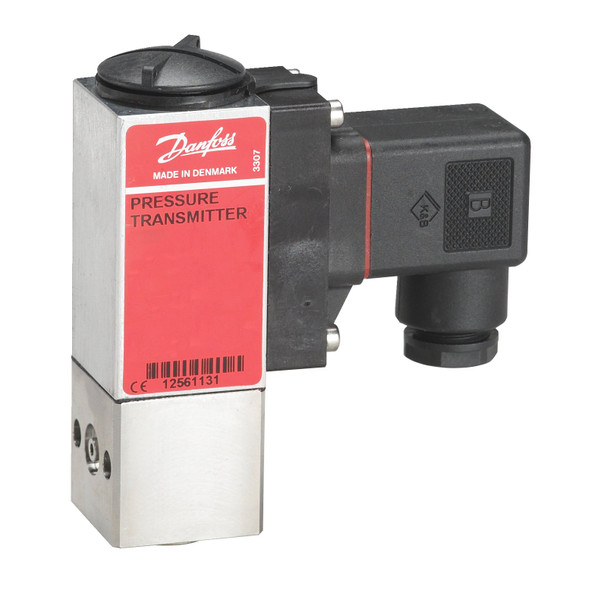

060N1109 Danfoss Pressure transmitter, MBS 5150

Write a Review
SKU:
060N1109
Availability:
2 - 3 weeks

Product details Gross weight 0.4 kg Net weight 0.38 kg EAN 5702423067824 Gross weight 0.4 kg Net weight 0.38 kg …

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.4 kg
Net weight 0.38 kg
EAN 5702423067824
Gross weight 0.4 kg
Net weight 0.38 kg
EAN 5702423067824



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.3 %
Accuracy, typical +/- FS [%] 0.1 %
Adj. zero point and span Yes
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 240 bar
Overload pressure max. [psi] 3481 psi
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Female
Pressure range [bar] [Max] 40 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 4000 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 580.15 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 12 pc
Response time max. [ms] 4 ms
Specification key MBS 5150-2611-A6CB04-4
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Test Signal Pin 3
Type MBS 5150
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.3 %
Accuracy, typical +/- FS [%] 0.1 %
Adj. zero point and span Yes
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 240 bar
Overload pressure max. [psi] 3481 psi
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Female
Pressure range [bar] [Max] 40 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 4000 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 580.15 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 12 pc
Response time max. [ms] 4 ms
Specification key MBS 5150-2611-A6CB04-4
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Test Signal Pin 3
Type MBS 5150
Product name: Pressure transmitter, Type: MBS 5150, Pressure range [psi]: 0.00 - 580.15, Pressure range [bar]: 0.00 - 40.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 11, Electrical connection: DIN-plug
