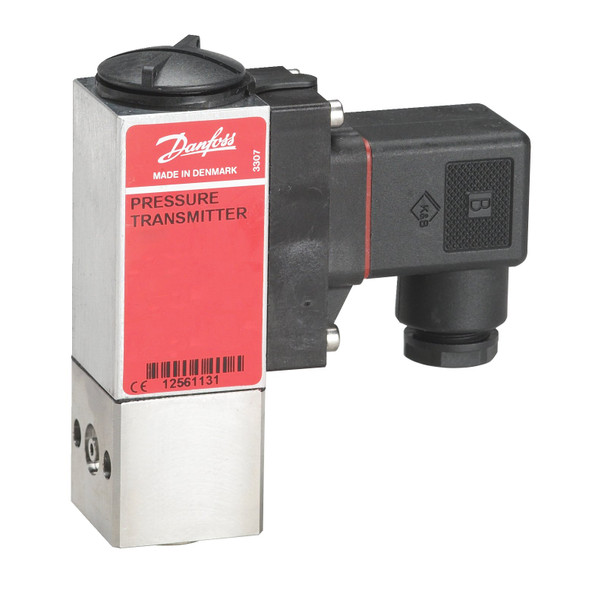

060N1025 Danfoss Pressure transmitter, MBS 5100

Write a Review
SKU:
060N1025
Availability:
2 - 3 weeks

Product details Gross weight 0.37 kg Net weight 0.36 kg EAN 5702423059973 Gross weight 0.37 kg Net weight 0.36 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.37 kg
Net weight 0.36 kg
EAN 5702423059973
Gross weight 0.37 kg
Net weight 0.36 kg
EAN 5702423059973



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.3 %
Accuracy, typical +/- FS [%] 0.1 %
Adj. zero point and span Yes
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 50 bar
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 1600 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 12 pc
Response time max. [ms] 4 ms
Specification key MBS 5100-2211-A6CB04-4
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Test Signal Pin 3
Type MBS 5100
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.3 %
Accuracy, typical +/- FS [%] 0.1 %
Adj. zero point and span Yes
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 50 bar
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 1600 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 12 pc
Response time max. [ms] 4 ms
Specification key MBS 5100-2211-A6CB04-4
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Test Signal Pin 3
Type MBS 5100
Product name: Pressure transmitter, Type: MBS 5100, Pressure range [psi]: 0.00 - 232.06, Pressure range [bar]: 0.00 - 16.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 11, Electrical connection: DIN-plug
