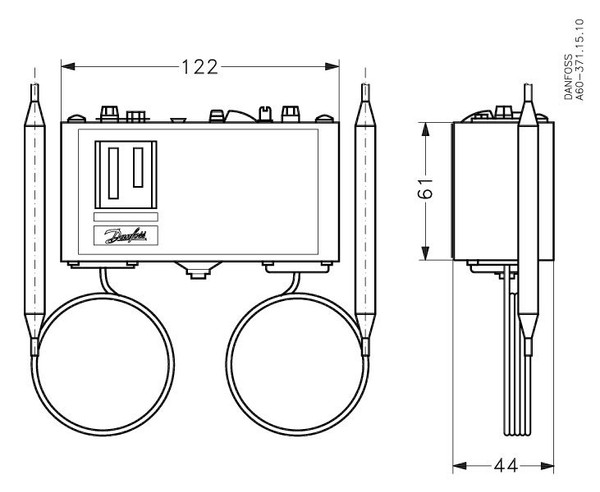

060L202466 Danfoss Thermostat, KP98

Write a Review
SKU:
060L202466
Availability:
2 - 3 weeks

Product details Gross weight 0.68 kg Net weight 0.62 kg EAN 5702428016797 Gross weight 0.68 kg Net weight 0.62 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.68 kg
Net weight 0.62 kg
EAN 5702428016797
Gross weight 0.68 kg
Net weight 0.62 kg
EAN 5702428016797



Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 150 °F
Ambient temperature range [°F] [Min] -40 °F
Approval CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CMIM
Cap. tube length fraction [in] 40 in
Capillary tube length [mm] 1016 mm
Charge type Adsorption
Contact function 2 SPST(NC)
Contact rating 120 V ac, 16 FLA, 96 LRA
16 A resistive, single phase
240 V ac, 8 FLA, 48 LRA
8 A resistive, single phase
Pilot Duty: 120/240 V ac 3A
Pilot Duty: 240V dc 12W(0.05A)
Diff. @ Max. range setting [K] 14 K
Diff. @ Max. range setting[°C] 14 °C
Diff. @ Max. range setting[°F] 25 °F
Diff. @ Min. range setting [K] 14 K
Diff. @ Min. range setting[°C] 14 °C
Diff. @ Min. range setting[°F] 25 °F
Differential type Fixed
Electrical conn. Male/Female Female
Electrical connection Swivel cable connector
Electrical connection size NPSM 1/2 - 14
Electrical connection standard ANSI/ASME B1.20.1
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Equipment Right side cap.tube 80 in
Max. sensor temperature [°C] 150 °C
Max. sensor temperature [°F] 302 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name KP thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 20 pc
Reset function, left side Manual Max
Reset function, right side Manual Max
Sensor size (Ø x L) [in] 3/8 x 4 1/2 in
Sensor size (Ø x L) [mm] 9.5 x 115 mm
Sensor type Remote bulb
Serviceable No
Temp. range left side [°C] [Max] 120 °C
Temp. range left side [°C] [Min] 60 °C
Temp. range left side [°F] [Max] 250 °F
Temp. range left side [°F] [Min] 140 °F
Temp. range right side [°C] [Max] 180 °C
Temp. range right side [°C] [Min] 100 °C
Temp. range right side [°F] [Max] 350 °F
Temp. range right side [°F] [Min] 210 °F
Type KP98
UL approval file name E31024
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 150 °F
Ambient temperature range [°F] [Min] -40 °F
Approval CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CMIM
Cap. tube length fraction [in] 40 in
Capillary tube length [mm] 1016 mm
Charge type Adsorption
Contact function 2 SPST(NC)
Contact rating 120 V ac, 16 FLA, 96 LRA
16 A resistive, single phase
240 V ac, 8 FLA, 48 LRA
8 A resistive, single phase
Pilot Duty: 120/240 V ac 3A
Pilot Duty: 240V dc 12W(0.05A)
Diff. @ Max. range setting [K] 14 K
Diff. @ Max. range setting[°C] 14 °C
Diff. @ Max. range setting[°F] 25 °F
Diff. @ Min. range setting [K] 14 K
Diff. @ Min. range setting[°C] 14 °C
Diff. @ Min. range setting[°F] 25 °F
Differential type Fixed
Electrical conn. Male/Female Female
Electrical connection Swivel cable connector
Electrical connection size NPSM 1/2 - 14
Electrical connection standard ANSI/ASME B1.20.1
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Equipment Right side cap.tube 80 in
Max. sensor temperature [°C] 150 °C
Max. sensor temperature [°F] 302 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name KP thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 20 pc
Reset function, left side Manual Max
Reset function, right side Manual Max
Sensor size (Ø x L) [in] 3/8 x 4 1/2 in
Sensor size (Ø x L) [mm] 9.5 x 115 mm
Sensor type Remote bulb
Serviceable No
Temp. range left side [°C] [Max] 120 °C
Temp. range left side [°C] [Min] 60 °C
Temp. range left side [°F] [Max] 250 °F
Temp. range left side [°F] [Min] 140 °F
Temp. range right side [°C] [Max] 180 °C
Temp. range right side [°C] [Min] 100 °C
Temp. range right side [°F] [Max] 350 °F
Temp. range right side [°F] [Min] 210 °F
Type KP98
UL approval file name E31024
