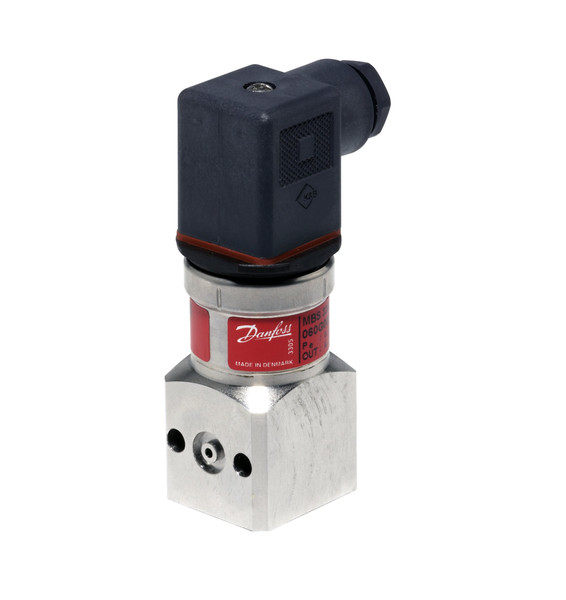

060G6498 Danfoss Pressure transmitter, MBS 2100

Write a Review
SKU:
060G6498
Availability:
2 - 3 weeks

Product details Gross weight 0.34 kg Net weight 0.12 kg EAN 5702428941655 Gross weight 0.34 kg Net weight 0.12 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.34 kg
Net weight 0.12 kg
EAN 5702428941655
Gross weight 0.34 kg
Net weight 0.12 kg
EAN 5702428941655



+ output Pin 3
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 60 bar
Overload pressure max. [psi] 870 psi
Packing format Multi pack
Pressure connection notes Block adapter with flange
Pressure connection type Flange
Pressure Male/Female Female
Pressure range [bar] [Max] 10 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 145.03 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Absolute
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 14 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Response time max. [ms] 4 ms
Specification key MBS 2100-2026-A1CD28-0
Supply voltage [V] DC [Max] 8 V
Supply voltage [V] DC [Min] 4.75 V
Type MBS 2100
+ output Pin 3
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 125 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 257 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 60 bar
Overload pressure max. [psi] 870 psi
Packing format Multi pack
Pressure connection notes Block adapter with flange
Pressure connection type Flange
Pressure Male/Female Female
Pressure range [bar] [Max] 10 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 145.03 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Absolute
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 14 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Response time max. [ms] 4 ms
Specification key MBS 2100-2026-A1CD28-0
Supply voltage [V] DC [Max] 8 V
Supply voltage [V] DC [Min] 4.75 V
Type MBS 2100
Product name: Pressure transmitter, Type: MBS 2100, Pressure range [psi]: 0.00 - 145.03, Pressure range [bar]: 0.00 - 10.00, Pressure connection type: Flange, Electrical connection size: Pg 9, Electrical connection: DIN-plug
