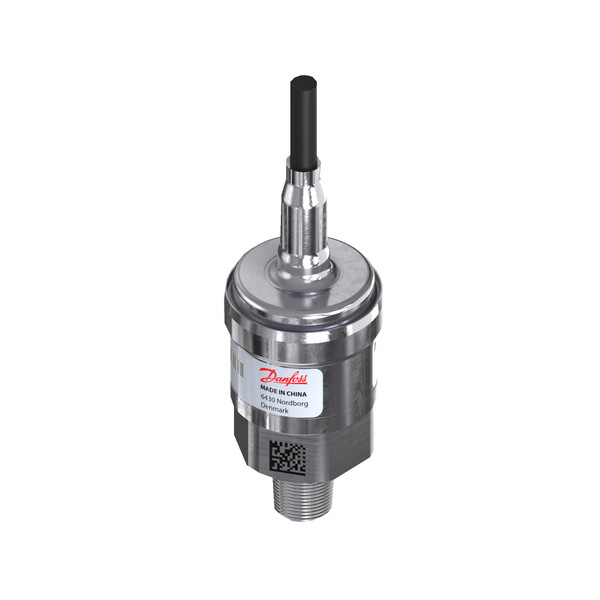

060G3956 Danfoss Pressure transmitter, MBS 3050

Write a Review
SKU:
060G3956
Availability:
2 - 3 weeks

Product details Gross weight 0.27 kg Net weight 0.25 kg EAN 5702423225699 Gross weight 0.27 kg Net weight 0.25 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.27 kg
Net weight 0.25 kg
EAN 5702423225699
Gross weight 0.27 kg
Net weight 0.25 kg
EAN 5702423225699



+ output White
+ supply Red
- common Black
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 79 in
Cable length [m] 2 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal Voltage
Output signal [V] [Max] 5.5 V
Output signal [V] [Min] 0.5 V
Overload pressure max. [psi] 21750 psi
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4-18
Pressure connection standard ANSI/ASME B1.20.1
Pressure connection type NPT
Pressure Male/Female Male
Pressure range [bar] [Max] 206.84 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3000 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-761D-A3AC04-0
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
+ output White
+ supply Red
- common Black
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 79 in
Cable length [m] 2 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal Voltage
Output signal [V] [Max] 5.5 V
Output signal [V] [Min] 0.5 V
Overload pressure max. [psi] 21750 psi
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4-18
Pressure connection standard ANSI/ASME B1.20.1
Pressure connection type NPT
Pressure Male/Female Male
Pressure range [bar] [Max] 206.84 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3000 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-761D-A3AC04-0
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
Product name: Pressure transmitter, Type: MBS 3050, Pressure range [psi]: 0.00 - 3000.00, Pressure range [bar]: 0.00 - 206.84, Pressure connection size: 1/4-18, Pressure connection type: NPT, Output signal [V]: 0.5000 - 5.5000, Electrical connection: Cable
