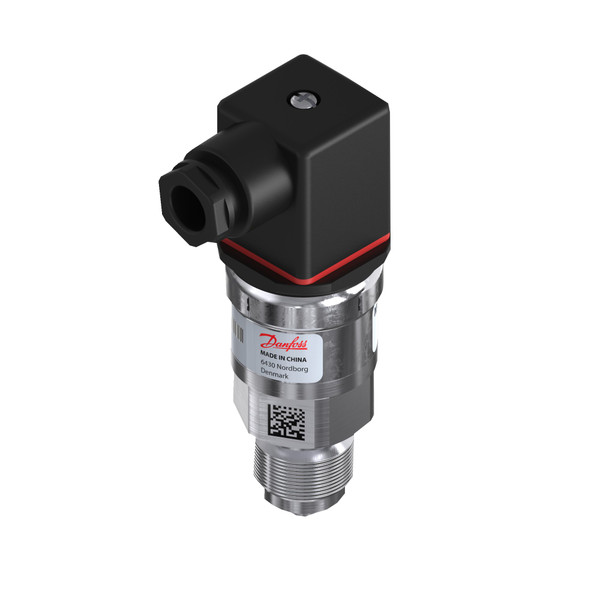

060G3532 Danfoss Pressure transmitter, MBS 3100

Write a Review
SKU:
060G3532
Availability:
2 - 3 weeks

Product details Gross weight 0.21 kg Net weight 0.19 kg EAN 5702423185207 Gross weight 0.21 kg Net weight 0.19 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.21 kg
Net weight 0.19 kg
EAN 5702423185207
Gross weight 0.21 kg
Net weight 0.19 kg
EAN 5702423185207



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 6 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3100-1011-A6AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Type MBS 3100
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 6 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3100-1011-A6AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Type MBS 3100
Product name: Pressure transmitter, Type: MBS 3100, Pressure range [psi]: 0.00 - 14.50, Pressure range [bar]: 0.00 - 1.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 11, Electrical connection: DIN-plug

Product details

Gross weight 0.21 kg
Net weight 0.19 kg
EAN 5702423185207
Gross weight 0.21 kg
Net weight 0.19 kg
EAN 5702423185207



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 6 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3100-1011-A6AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Type MBS 3100
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 6 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3100-1011-A6AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Type MBS 3100
×
