Description

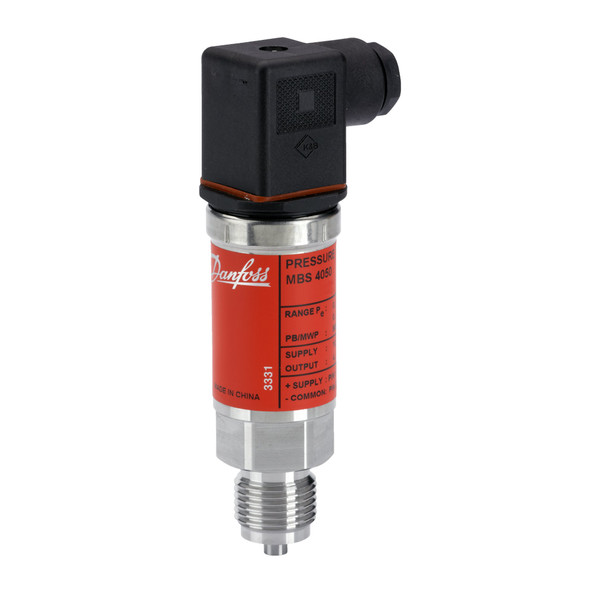

Product name: Pressure transmitter, Type: MBS 4050, Pressure range [psi]: 0.00 - 87.02, Pressure range [bar]: 0.00 - 6.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 9, Electrical connection: DIN-plug
Product details
| Gross weight | 0.24 kg |
| Net weight | 0.22 kg |
| EAN | 5702423062935 |
| Gross weight | 0.24 kg |
| Net weight | 0.22 kg |
| EAN | 5702423062935 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. +/- FS [%] | 0.8 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 20 bar |
| Overload pressure max. [kPa] | 2000 kPa |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/2 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 6 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [kPa] [Max] | 600 kPa |
| Pressure range [kPa] [Min] | 0 kPa |
| Pressure range [psi] [Max] | 87.02 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 14 pc |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 4050-1811-A1AB08-0 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 10 V |
| Type | MBS 4050 |
