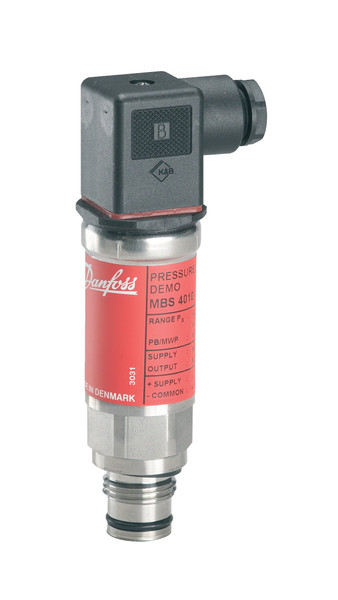

060G3213 Danfoss Pressure transmitter, MBS 4010

Write a Review
SKU:
060G3213
Availability:
2 - 3 weeks

Product details Gross weight 0.27 kg Net weight 0.27 kg EAN 5702423055708 Gross weight 0.27 kg Net weight 0.27 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702423055708
Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702423055708



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -10 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] 14 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm Yes
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Overload pressure max. [kPa] 2000 kPa
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 10 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 1000 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 145.04 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 4010-2011-A1CB12-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 4010
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -10 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] 14 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm Yes
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Overload pressure max. [kPa] 2000 kPa
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 10 bar
Pressure range [bar] [Min] 0 bar
Pressure range [kPa] [Max] 1000 kPa
Pressure range [kPa] [Min] 0 kPa
Pressure range [psi] [Max] 145.04 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 4010-2011-A1CB12-2
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 4010
Product name: Pressure transmitter, Type: MBS 4010, Pressure range [psi]: 0.00 - 145.04, Pressure range [bar]: 0.00 - 10.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 9, Electrical connection: DIN-plug
