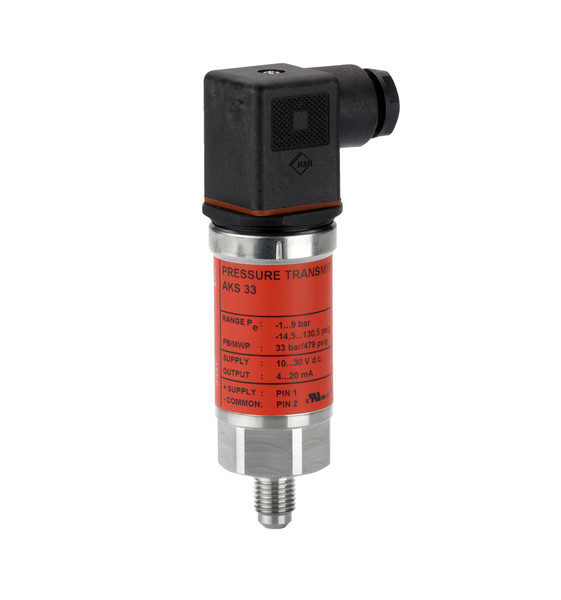

060G2050 Danfoss Pressure transmitter, AKS 33

Write a Review
SKU:
060G2050
Availability:
2 - 3 weeks

Product details Gross weight 0.19 kg Net weight 0.17 kg EAN 5702422069492 Gross weight 0.19 kg Net weight 0.17 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.19 kg
Net weight 0.17 kg
EAN 5702422069492
Gross weight 0.19 kg
Net weight 0.17 kg
EAN 5702422069492



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
C UR
CSA
GOST POCC
Approval comments ATEX Ex nA IIA T3 Gc
Approval standard 6967179
E227388
E31024
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 40 bar
Overload pressure max. [psi] 580 psi
Packing format Multi pack
Pressure connection notes Flare 1/4 in
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 20 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 290 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product family name AKS
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key AKS 33-9231-A1BC08-0
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type AKS 33
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
C UR
CSA
GOST POCC
Approval comments ATEX Ex nA IIA T3 Gc
Approval standard 6967179
E227388
E31024
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 40 bar
Overload pressure max. [psi] 580 psi
Packing format Multi pack
Pressure connection notes Flare 1/4 in
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 20 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 290 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product family name AKS
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key AKS 33-9231-A1BC08-0
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type AKS 33
Pressure connection size: 7/16-20, Pressure connection type: UNF, Electrical connection size: Pg 9, Electrical connection: DIN-plug
