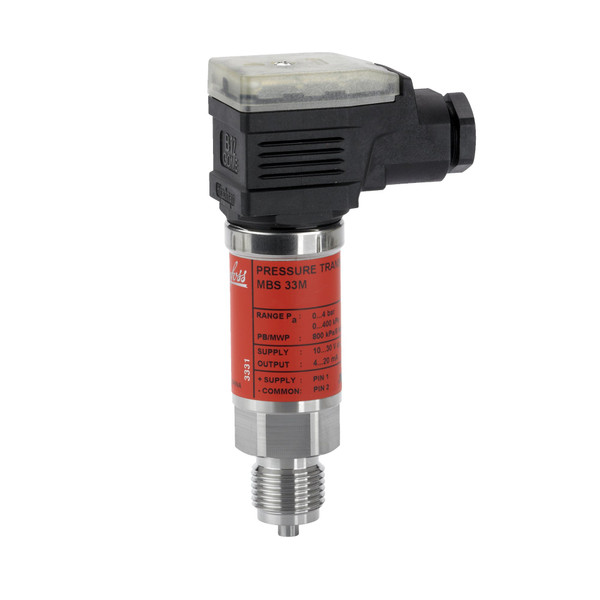

060G1705 Danfoss Pressure transmitter, MBS 33M

Write a Review
SKU:
060G1705
Availability:
2 - 3 weeks

Product details Gross weight 0.26 kg Net weight 0.25 kg EAN 5702423143924 Gross weight 0.26 kg Net weight 0.25 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423143924
Gross weight 0.26 kg
Net weight 0.25 kg
EAN 5702423143924



+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 13.5
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 8 bar
Overload pressure max. [kPa] 800 kPa
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 3 bar
Pressure range [bar] [Min] -1 bar
Pressure range [kPa] [Max] 300 kPa
Pressure range [kPa] [Min] -100 kPa
Pressure range [psi] [Max] 43.51 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 33M-8521-A9AB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33M
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 13.5
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 8 bar
Overload pressure max. [kPa] 800 kPa
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 3 bar
Pressure range [bar] [Min] -1 bar
Pressure range [kPa] [Max] 300 kPa
Pressure range [kPa] [Min] -100 kPa
Pressure range [psi] [Max] 43.51 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 33M-8521-A9AB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33M
Product name: Pressure transmitter, Type: MBS 33M, Pressure range [psi]: -14.50 - 43.51, Pressure range [bar]: -1.00 - 3.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 13.5, Electrical connection: DIN-plug
