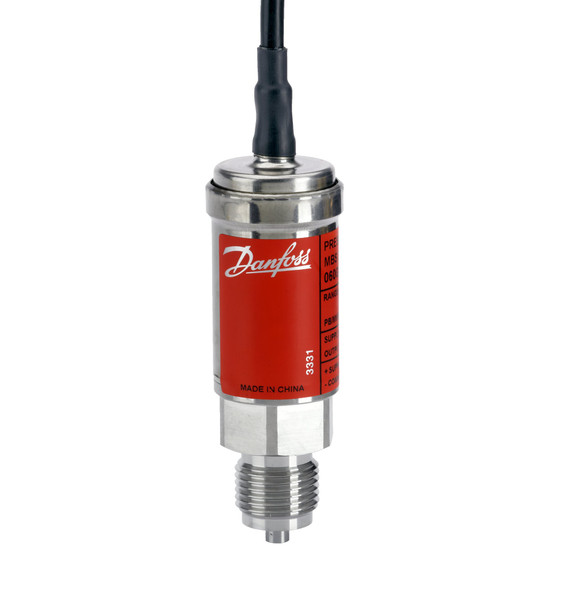

060G1694 Danfoss Pressure transmitter, MBS 33

Write a Review
SKU:
060G1694
Availability:
2 - 3 weeks

Product details Gross weight 1.01 kg Net weight 0.96 kg EAN 5702423142064 Gross weight 1.01 kg Net weight 0.96 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.01 kg
Net weight 0.96 kg
EAN 5702423142064
Gross weight 1.01 kg
Net weight 0.96 kg
EAN 5702423142064



+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 0.5 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 7.25 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-0711-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 0.5 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 7.25 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-0711-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
Product name: Pressure transmitter, Type: MBS 33, Pressure range [psi]: 0.00 - 7.25, Pressure range [bar]: 0.00 - 0.50, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection: Cable

Product details

Gross weight 1.01 kg
Net weight 0.96 kg
EAN 5702423142064
Gross weight 1.01 kg
Net weight 0.96 kg
EAN 5702423142064



+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 0.5 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 7.25 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-0711-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 0.5 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 7.25 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-0711-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
×
