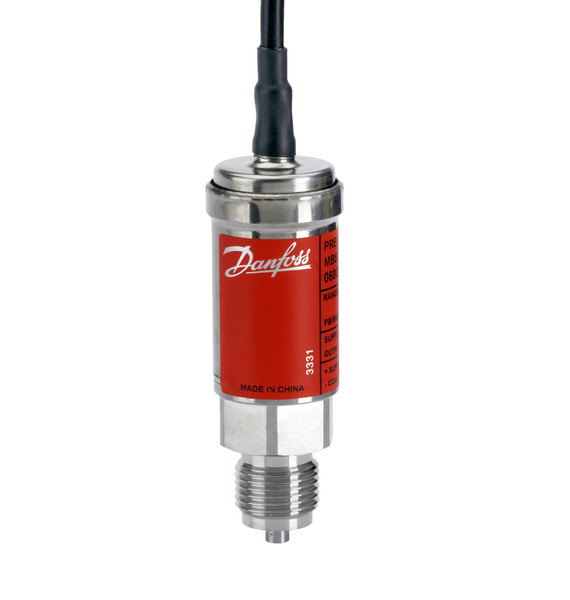

060G1693 Danfoss Pressure transmitter, MBS 33

Write a Review
SKU:
060G1693
Availability:
2 - 3 weeks

REQUEST A QUOTE

Product details Gross weight 1 kg Net weight 0.95 kg EAN 5702423142057 Gross weight 1 kg Net weight 0.95 kg EAN…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1 kg
Net weight 0.95 kg
EAN 5702423142057
Gross weight 1 kg
Net weight 0.95 kg
EAN 5702423142057



+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-1011-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
+ supply Brown
- common Black
Accuracy, max. +/- FS [%] 0.8 %
Accuracy, typical +/- FS [%] 0.3 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -22 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Cable length [in] 590 in
Cable length [m] 15 m
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Screened
Electrical connection Cable
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 2 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 1 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 14.5 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key MBS 33-1011-DNAB08-0
Supply current max. [mA] 28 mA
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
Type MBS 33
Product name: Pressure transmitter, Type: MBS 33, Pressure range [psi]: 0.00 - 14.50, Pressure range [bar]: 0.00 - 1.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection: Cable
