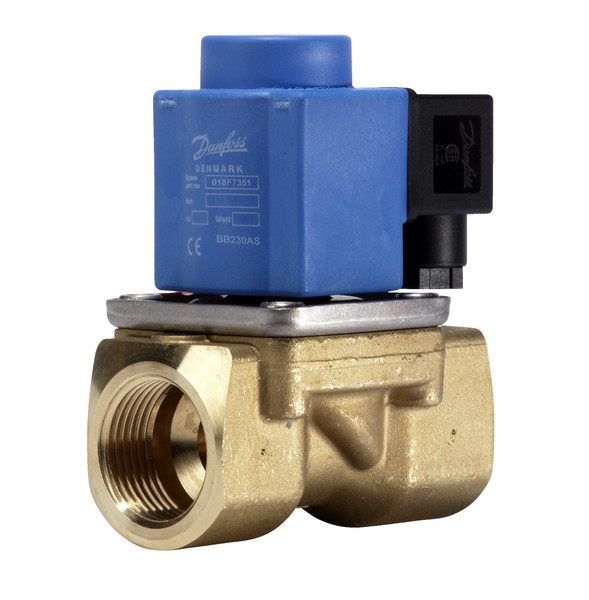

032U538331 Danfoss Solenoid valve, EV251B

Write a Review
SKU:
032U538331
Availability:
2 - 3 weeks

Product details Gross weight 1.28 kg Net weight 1.19 kg EAN 5702423292578 Gross weight 1.28 kg Net weight 1.19 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.28 kg
Net weight 1.19 kg
EAN 5702423292578
Gross weight 1.28 kg
Net weight 1.19 kg
EAN 5702423292578



Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Body material Brass
Coil option Clip-on
Coil type BB
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 4.05 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 0 psi
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP65
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Fluid Group I
Frequency [Hz] 50 Hz
Function NC
Kv value [m³/h] 3.5 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Technical water
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Assisted lift operated
Orifice size [mm] 22 mm
Orifice size fraction [in] 7/8 in
Packing format Multi pack
Power consumption [W] 50Hz 11 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 12 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV251B 22B G 1N NC688 BB230AS
Supply voltage 50Hz Max [V] 230 V
Supply voltage [V] a.c. 230 V
Supply voltage [V] AC 230 V
Type EV251B
Type designation EV251B 22
Valve operation SERVO-DIAPHRAGM
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Body material Brass
Coil option Clip-on
Coil type BB
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 4.05 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 0 psi
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP65
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Fluid Group I
Frequency [Hz] 50 Hz
Function NC
Kv value [m³/h] 3.5 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Technical water
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Assisted lift operated
Orifice size [mm] 22 mm
Orifice size fraction [in] 7/8 in
Packing format Multi pack
Power consumption [W] 50Hz 11 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 12 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV251B 22B G 1N NC688 BB230AS
Supply voltage 50Hz Max [V] 230 V
Supply voltage [V] a.c. 230 V
Supply voltage [V] AC 230 V
Type EV251B
Type designation EV251B 22
Valve operation SERVO-DIAPHRAGM
Product name: Solenoid valve, Type: EV251B, Function: NC, Connection size [in]: 1, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 4.050, Kv value [m³/h]: 3.500, Seal Material: NBR
