Description

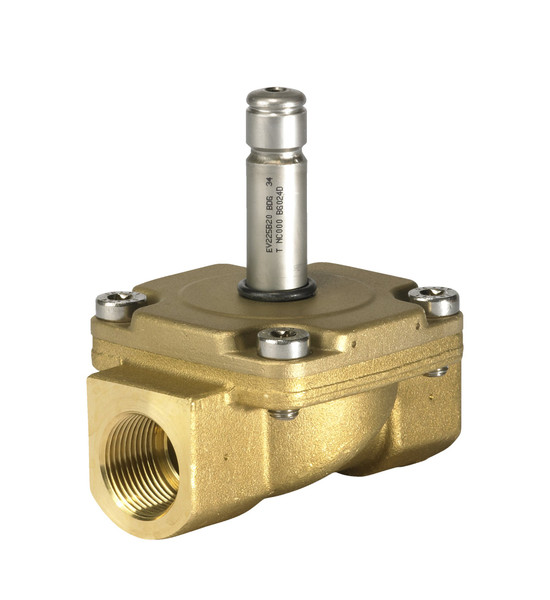

Product name: Solenoid valve, Type: EV225B, Function: NC, Connection size [in]: 3/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 5.800, Kv value [m³/h]: 5.000, Seal Material: PTFE
Product details
| Gross weight | 1.21 kg |
| Net weight | 1.17 kg |
| EAN | 5702428473071 |
| Gross weight | 1.21 kg |
| Net weight | 1.17 kg |
| EAN | 5702428473071 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 40 °C |
| Ambient temperature max. [°F] | 104 °F |
| Approval | UL UR |
| Body material | DZR brass |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 5.8 gal/min |
| Differential pressure [bar] [Max] | 10 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 4.35 psi |
| Est. time to close, water [ms] | 20 ms |
| Est. time to open, water [ms] | 20 ms |
| Flow direction | Single-flow |
| Fluid Group | I |
| Function | NC |
| Kv value [m³/h] | 5 m3/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media tolerance comments | Slightly aggressive media |
| Medium temperature range [°C] [Max] | 185 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 365 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Seal Material | PTFE |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV225B 20BD G 34T NC000 |
| Type | EV225B |
| Type designation | EV225B 20 |
| Valve operation | SERVO-DIAPHRAGM |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 40 °C |
| Ambient temperature max. [°F] | 104 °F |
| Approval | UL UR |
| Body material | DZR brass |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 5.8 gal/min |
| Differential pressure [bar] [Max] | 10 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 4.35 psi |
| Est. time to close, water [ms] | 20 ms |
| Est. time to open, water [ms] | 20 ms |
| Flow direction | Single-flow |
| Fluid Group | I |
| Function | NC |
| Kv value [m³/h] | 5 m3/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media tolerance comments | Slightly aggressive media |
| Medium temperature range [°C] [Max] | 185 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 365 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Seal Material | PTFE |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV225B 20BD G 34T NC000 |
| Type | EV225B |
| Type designation | EV225B 20 |
| Valve operation | SERVO-DIAPHRAGM |
